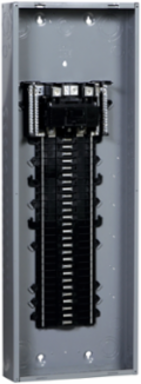

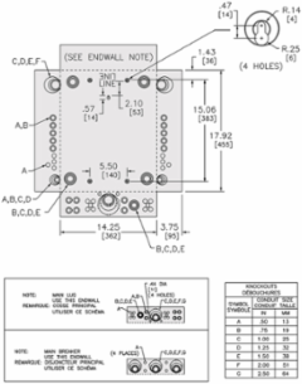

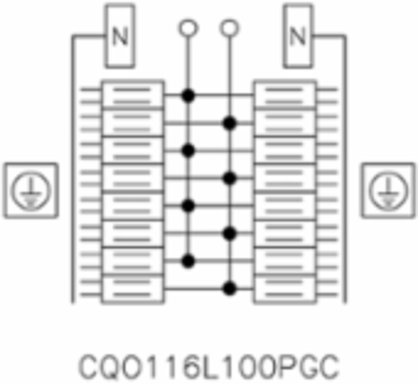

Square D CQO116L100PGC QO Loadcentre 1 Phase 100A, 16 Spaces, 30 Circuits, NEMA 1
- MPN: CQO116L100PGC
- UPC: 785901970781
- PPN: SCH-CQO116L100PGC
CAD
$153.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 16 spaces and 30 circuits. This system provides a 100A main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, combination cover, and CSA rated.
Features
- This QO Load Center is specifically designed for Schneider Electric s innovative Plug-On Neutral (PON) system, allowing for a direct connection from the breaker to the neutral bar. This eliminates the need for messy pigtails on CAFI and DFCI breakers, reducing gutter clutter by up to 20% and significantly speeding up installation for residential electricians and contractors.
- Equipped with a pre-installed 100-Amp main lug, this unit is perfectly suited for use as a sub-panel in residential or light commercial applications where a main service disconnect is already present upstream. The 16-space, 24-circuit capacity provides ample room for expanding power to ADUs, workshops, or basement renovations without the need for a full service upgrade.
- The rugged NEMA 1 indoor enclosure is treated with a specialized "shield-wash" phosphate coating and finished with an electro-deposited gray powder paint. This superior corrosion resistance ensures the panel remains structurally sound and visually clean over decades of service, protecting your sensitive electrical distribution hardware from rust and environmental degradation.
- To ensure a faster, more cost-effective setup, this model comes with a factory-included ground bar already mounted. This saves you the hassle of sourcing separate components and ensures that your grounding system is correctly bonded from day one, meeting strict NEC safety requirements and providing a reliable path for fault currents to protect your household electronics.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- ZZ
Depth95 mm
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, LC
- Carbon Footprint Of The Distribution Phase [A4]
- 3.833325, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0089478794, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- Y
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Cover Type
- combination flush/surface cover
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Load Center Type
- PoN Convertible Mains (lugs)
- Number Of Circuits
- 30
- Number Of Tandem Circuit Breakers
- 14
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- grounding bar
- Returnability
- Yes
- Surface Finish
- baked enamel Gray
- Tightening Torque
- main lugs 50 lb.in, 6 AWG...2/0 AWG, aluminium/copper
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Lexington
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 88
- Width Nominal
- 362 mm
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Contractor
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1889727941
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.8314411765
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Device Compositiongrounding bar included (not installed)
Enclosure Materialwelded sheet steel
Installation Directionvertical
Materialtin plated copper: busbar
Number Of Spaces16
Phase1 phase
Product Or Component TypeLoad Center
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint87 kg CO2 eq.
Pep CodeENVPEP2212001EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal455 mm
Certificate AgencyCSA
Short-circuit Current65 kA
Package Weight(Lbs)11.34 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Manufacturing [A1-a3]3900.15
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.95002785
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
