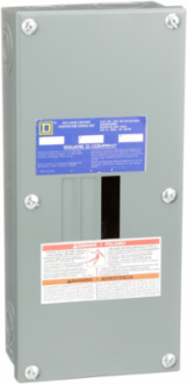

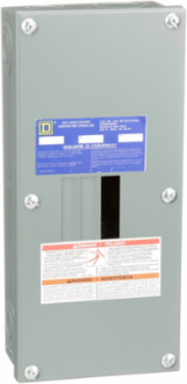

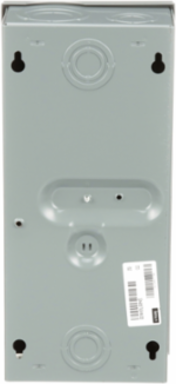

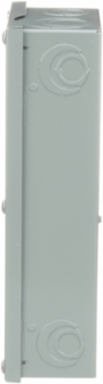

Square D QO403L60NS QO Load Center 3 Phase, 3 Spaces, 60A Main Lugs, NEMA 1
- MPN: QO403L60NS
- UPC: 785901051701
- PPN: SCH-QO403L60NS
CAD
$421.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, surface cover, and is UL rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- main lugs 35 lb.in, 14 AWG...10 AWG, aluminium/coppermain lugs 50 lb.in, 3 AWG...1 AWG, aluminium/coppermain lugs 40 lb.in, 8 AWG...4 AWG, aluminium/copper, main lugs 35 lb.in, 12 AWG...10 AWG, aluminium/copper
- Carbon Footprint Of The Distribution Phase [A4]
- 0.8785626483, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.010517752, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Box Number
- 13
- Device Composition
- neutral (factory installed)
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated aluminium: busbar
- Number Of Spaces
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Tlaxcala Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 89
- Width Nominal
- 149 mm
- Short-circuit Current
- 65 kA
- Package Weight(Lbs)
- 2.599 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.0634
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.1758
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
[Ue] Rated Operational Voltage208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2428222486
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 13.0014934416
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Awg Gauge10 AWG...6 AWG copper
Cover Typesurface cover
Electrical Connectionlugs
Energy Efficiency OptimizedFalse
Load Center TypeFixed Mains (lugs)
Number Of Circuits3
Phase3 phase 4 wires
Product Or Component TypeLoad Center
ReturnabilityYes
Surface Finishbaked enamel Gray
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Pep CodeENVPEP2212003EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal333 mm
Certificate AgencyUL Listed
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212003EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint14.2207370906
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
