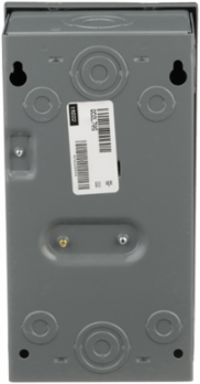

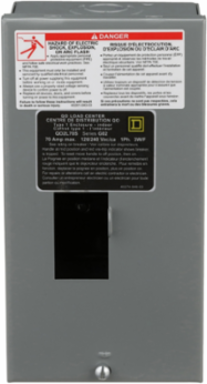

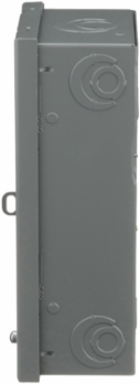

Square D QO2L70S QO Load Center, 1 Phase, 2 Spaces, 2 Circuits, 70A, NEMA 1
- MPN: QO2L70S
- UPC: 785901707738
- PPN: SCH-QO2L70S
CAD
$112.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.
Features
- Rated for a robust 70 Amps at 120/240V, this fixed main lug subpanel provides the ideal power distribution solution for secondary residential applications. It safely isolates heavy electrical loads like workshop air compressors, hot tub pumps, or dedicated HVAC equipment preventing dangerous overloads and nuisance tripping at your primary home breaker box.
- Engineered with two standard breaker spaces, this compact electrical panel easily accommodates up to four total circuits when using space-saving Square D QO tandem breakers. This flexible, high-density design gives DIY homeowners and electricians the perfect amount of capacity for detached sheds or garage overhauls without the unnecessary cost and physical bulk of a full-sized residential panel.
- Constructed from rugged, welded sheet steel, this NEMA 1 rated indoor enclosure is specifically designed for surface mounting directly onto walls or exposed structural studs. This completely eliminates the frustrating, messy process of cutting into existing finished drywall during retrofits, providing a highly durable housing that keeps live wiring safely contained in basements, utility rooms, and dry workshops.
- Built with high-conductivity, tin-plated aluminum busbars that accept both copper and aluminum wiring, this unit is engineered exclusively for industry-leading Square D QO plug-on circuit breakers. Utilizing OEM-approved hardware guarantees a tight, reliable physical connection that prevents arcing, while allowing you to leverage QO s exclusive Visi-Trip technology for instant visual fault identification.
- Fully cULus listed and CSA certified, this trusted Schneider Electric load center rigorously satisfies North American safety standards for residential and light commercial voltage distribution. Relying on factory-tested, compliant hardware ensures your electrical expansion project easily passes strict municipal inspections and protects your property against catastrophic electrical failures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth79 mm
Complementary Attributes
- Line Rated Current
- 70 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- main lugs 35 lb.in, 14 AWG...10 AWG, aluminium/coppermain lugs 45 lb.in, 3 AWG, aluminium/coppermain lugs 40 lb.in, 8 AWG...4 AWG, aluminium/copper, main lugs 35 lb.in, 12 AWG...10 AWG, aluminium/copper
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1027734498
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 7.2753537118
- Local Data Status
- Publishable
- Return Indicator
- Y
- Use Carbon Footprint
- 4.0395
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...2 AWG aluminium/copper
- Device Composition
- grounding bar (ordered separately)
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated aluminium: busbar
- Number Of Spaces
- 2
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 952.5mm x1219.2mm x 101.6mm, comply with UL 67 and CSA22.2 with an available offer:& 10-suitable for use on 120/240 Vac and 48 Vdc systems& 10-rated 30–125 A& 10-supplies from two to sixteen circuits& 10-surface or flush-mounted cover& 10-Types 1 & 3R& 10-main lugs only
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Tlaxcala Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 90
- Width Nominal
- 119 mm
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 343.04
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 4.0395
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 51.116
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 3.266
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 3.266
- Customs Code
- 8537109150
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]0.5679060262, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0371081921, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 kg CO2 eq., 4.0395
Local Publishable Date2026-07-14
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Cover Typesurface cover
Electrical Connectionlugs
Energy Efficiency OptimizedFalse
Load Center TypeFixed Mains (lugs)
Number Of Circuits2
Phase1 phase 3 wires
Product Or Component TypeLoad Center
ReturnabilityYes
Surface Finishbaked enamel Gray
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Pep CodeENVPEP2212002EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal233 mm
Certificate AgencycULus
Short-circuit Current10 kA
Package Weight(Lbs)1.687 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]49.182
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]0.108
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]54.382
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]51.116
Water Pollution (M3) Operational Energy Use [B6]199.15
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212002EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint12.0226413799
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2212002EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
