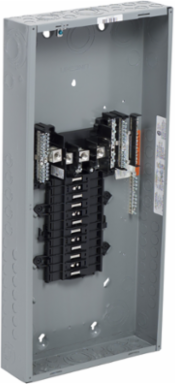

Square D QO324ML2 3 Phase Load Center 24 Circuit 200A Main Lugs NEMA 1
- MPN: QO324ML2
- UPC: 785901751106
- PPN: SCH-QO324ML2
CAD
$521.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides 200A convertible main lugs in a NEMA 1 enclosure. This product is UL rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- 4 AWG...250 kcmil aluminium/copper
- Cover Type
- order separately
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Load Center Type
- main lugs
- Number Of Circuits
- 24
- Phase
- 3 phase 4 wires
- Product Or Component Type
- Load Center
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2212001EN
- Width Nominal
- 362 mm
- Short-circuit Current
- 10 kA
- Package Weight(Lbs)
- 7.729 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2436
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Box Number10
Device Compositiongrounding bar (ordered separately)
Enclosure Materialwelded sheet steel
Installation Directionvertical
Materialtin plated copper: busbar
Number Of Spaces24
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Surface Finishbaked enamel Gray
Tightening Torquemain lugs 250 lb.in, 4 AWG...250 kcmil, aluminium/copperCover 20 lb.in
Height Nominal758 mm
[Ue] Rated Operational Voltage120/240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP2212001EN
Nema Degree Of ProtectionNEMA 1 indoor enclosure
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212001EN
General Attributes
- Phase
- 3 phase 4 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
