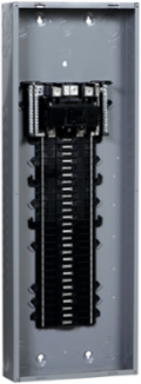

Square D CQO112M60PC QO Loadcentre 12 Spaces, 24 Circuits, 60A Main Breaker, NEMA 1
- MPN: CQO112M60PC
- UPC: 785901779605
- PPN: SCH-CQO112M60PC
CAD
$154.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 12 spaces and 24 circuits. This system provides a 60A main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is CSA rated.
Features
- This Square D QO Load Center comes factory-installed with a 60-amp main breaker, providing a dedicated point of disconnect for smaller residential services or detached structures. This integrated protection eliminates the need for separate upstream fusing, saving you significant installation time and material costs while ensuring your circuitry is guarded against overloads and short circuits.
- Featuring 12 full-sized spaces for QO plug-on breakers, this compact panel allows for a high density of circuits in a small footprint. It is ideal for modernizing kitchens, workshops, or basement suites where you need to distribute power for multiple high-draw appliances without the bulk of a full-sized 40-circuit service panel.
- Engineered for the Square D Plug-On Neutral system, this panel allows compatible CAFI and DFCI breakers to connect directly to the neutral bar. By removing the need for "pigtail" wires, you reduce gutter clutter by up to 20%, minimize the risk of loose connections, and significantly speed up the wiring process for code-mandated safety breakers.
- Built with a tin-plated copper bus bar, the CQO112M60PC offers superior conductivity and resistance to oxidation compared to standard aluminum alternatives. This high-grade material ensures a low-resistance connection for decades, preventing the heat buildup and terminal degradation that can lead to premature equipment failure in humid or unconditioned spaces.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 3.833325, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0089478794, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- Y
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Cover Type
- combination flush/surface cover
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated copper: busbar
- Number Of Spaces
- 12
- Phase
- 1 phase
- Product Or Component Type
- Load Center
- Returnability
- Yes
- Surface Finish
- baked enamel Gray
- Tightening Torque
- Cover 20 lb.in
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Lexington
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 88
- Width Nominal
- 362 mm
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1889727941
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.8314411765
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Electrical Connectionlugs
Energy Efficiency OptimizedFalse
Load Center TypePoN Convertible Mains (breaker)
Number Of Circuits24
Number Of Tandem Circuit Breakers12
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint87 kg CO2 eq.
Pep CodeENVPEP2212001EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal379 mm
Certificate AgencyCSA
Short-circuit Current22 kA
Package Weight(Lbs)11.34 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Manufacturing [A1-a3]3900.15
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.95002785
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
