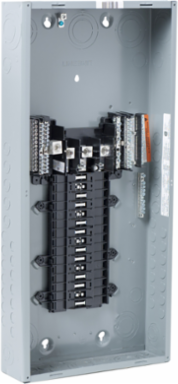

Square D QO330ML2 Load Center, 3 Phase, 30 Spaces, 30 Circuits, 200A NEMA 1
- MPN: QO330ML2
- UPC: 785901751113
- PPN: SCH-QO330ML2
CAD
$681.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A convertible main lugs in a NEMA 1 enclosure. This product is UL and CSA rated.
Features
- Featuring a generous 30-circuit capability within a compact footprint, this interior allows commercial electricians and property managers to maximize branch circuit density. It handles a diverse mix of single-pole and multi-pole breakers, making it perfect for dedicated workshop power feeds, multi-family sub-panels, or localized commercial retail lighting distribution.
- Shipped with factory-installed 200-amp main lugs for straightforward sub-panel applications, this chassis is fully convertible to a main circuit breaker panelboard using simple, field-installable conversion kits. This versatility saves valuable project time by adapting instantly to shifting design-build requirements without forcing you to source an entirely new enclosure.
- Engineered exclusively for the legendary Square D™ QO™ plug-on circuit breaker lineup, this panelboard guarantees a low-resistance, rock-solid physical and electrical connection. It seamlessly accommodates standard thermal-magnetic breakers, dual-function CAFCI/GFCI safety devices, and surge protective modules, providing your installation with ultimate system-wide reliability and safety.
- Built to handle a 3-phase, 3-wire or 4-wire, 240V AC maximum electrical configuration, this load center effortlessly balances heavy commercial power loads. It provides clean, stable power delivery to multi-phase motors, commercial kitchen equipment, and HVAC compressors while maintaining strict compliance with local electrical safety codes.
Documentation & Downloads
Specifications
Additional
- Amperage
- 200 A
- Number of Spaces
- 30
- Phases
- 3 phases
- Wire Size
- AWG 4...250 kcmil aluminum/copper
- Enclosure Rating
- NEMA 1 indoor
- Electrical Connection
- lugs
- Width
- 362 mm (14.25 in)
- Product Certifications
- cULus, CSA
- Ambient Air Temperature for Operation
- -5°C to 40°C (23°F to 104°F)
- Loadcentre Type
- Main lugs
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- REACH Free of SVHC
- Yes
- Range of Product
- QO
Voltage120/240 V AC
Number of Circuits30
Wiring Configuration4-wire
Tightening Torquemain lugs 250 lb.in, cover 20 lb.in
Enclosure Materialwelded sheet steel
Height758 mm (29.84 in)
Depth95 mm (3.74 in)
Country of OriginUS
Product Or Component TypeLoadcentre
Number of Tandem Circuit Breakers0
RoHS CompliantYes
China RoHS RegulationPro-active declaration (out of China RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
