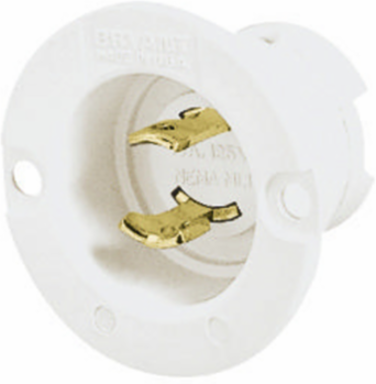

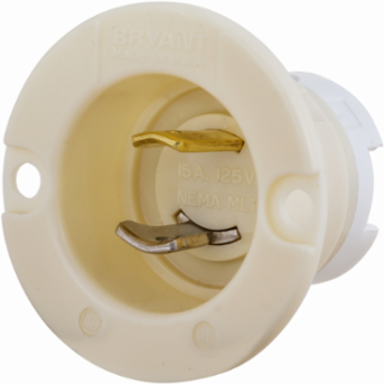

Bryant 7466N Midget Locking Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, Flanged Inlet, Screw Terminal
- MPN: 7466N
- UPC: 781786638518
- PPN: HBL-7466N
- UNSPSC: 39121406
CAD
$42.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet,15A 125V, 2-Pole 2-Wire Non Grounding, ML-1P, Screw Terminal, Black
Features
- Industrial
- Flanged Inlet
- 15A 125V
- 2-Pole 2-Wire Non Grounding
- ML-1P
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Size
- 1.63 in x 1.38 in x 1.28 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125V
- Connectivity
- Screw Terminals
- Nema Rating
- ML-1P
- Number Of Wires
- 2-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 3.800 lb.
- Lowest Level UOM
- Each
Dimensions1.63 in x 1.38 in x 1.28 in
Length1.63 in
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingML-1P
Number of Wires2-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#18 AWG to #12 AWG
Width1.38 in
Display SizeMidget Locking
Number Of Poles2-Pole
StyleNon-Grounding
Description - InvoiceLKG FLG-INLT, MIDGET, 15A 125V, ML-1P
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE4.000x7.600x5.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786638518
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
