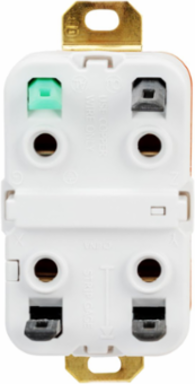

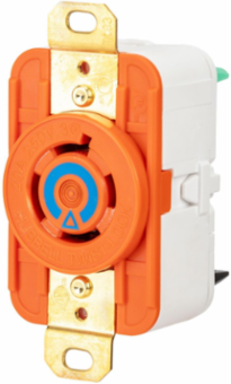

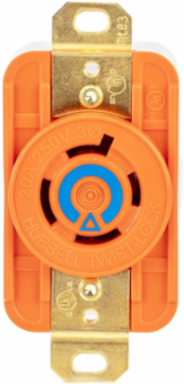

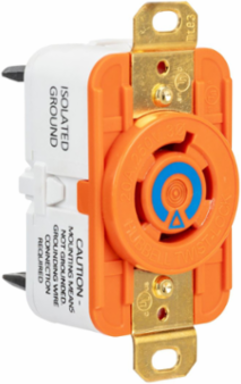

Hubbell Wiring Device-Kellems IG2420ST EdgeConnect Isolated Ground Flush Receptacle 20A 250V AC L15-20R 3-Phase
- MPN: IG2420ST
- UPC: 783585730363
- PPN: HBL-IG2420ST
- UNSPSC: 39121406
CAD
$125.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, EdgeConnect™, Isolated Ground Industrial, Flush Receptacle, 20A 3-Phase Delta 250V AC, L15-20R, Spring Termination, Orange
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Spring termination greatly reduces the possibility of loosening the terminal connection with vibration and strand relaxation over time
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.7 in x 1.23 in
- Horsepower - Maximum
- 3
- Length
- 3.28 in
- Application
- Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L15-20R
- Number of Wires
- 4-Wire Grounding
- Size
- 3.28 in x 1.7 in x 1.23 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
- Voltage Rating
- 250 V
- Weight
- 0.30 lb.
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology
- General Literature Asset 3 Display Text
- EdgeConnect™ Termination vs Standard Push Wire
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum without Impact -40 °C
- Class Code
- A08
- Harmonization Code
- 8536698000
- Sub Class Code
- A08A110
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.23 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
ColorOrange
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesIsolated Ground
TypeIsolated Ground
Wire Size#16 AWG to #8 AWG
Width1.7 in
General Literature Asset 2 Display TextEdgeConnect™ Technology FAQ
ConnectivitySpring Termination
Nema RatingL15-20R
Number Of Wires4-Wire Grounding
StyleLocking Devices
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
SeriesEdgeConnect™ Series
BOX SIZE7.500x4.100x8.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585730363
Case Weight0.000
Certifications
- EU RoHS Indicator
- Yes
