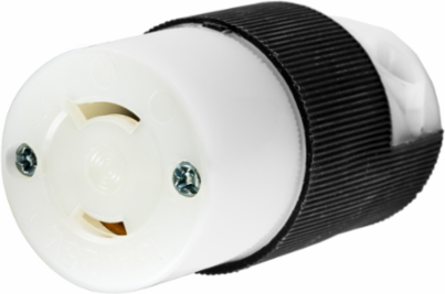

Hubbell Wiring Device-Kellems HBL7506C Twist-Lock Connector Body 15A 125V 2-Pole 2-Wire Black and White
- MPN: HBL7506C
- UPC: 783585177908
- PPN: HBL-HBL7506C
- UNSPSC: 39121421
CAD
$34.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 15A 125V , 2-Pole 2-Wire Non-Grounding, NEMA L1-15R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL7506C AutoCAD Drawing
- Current / Amperage Rating
- 15 A
- Height
- 2.78 in
- Length
- 1.53 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L6-15R
- Size
- 1.53 in x 1.53 in x 2.78 in
- Standard
- Certified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
- Type
- Connector Body
- Voltage Rating Description
- 125 V
- Width
- 1.53 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L6-15R
- Number Of Wires
- 2-Wire
- Phase
- Single Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7506C
- Cable Range
- 0.220 - 0.720 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 11.289 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 38.800 in
- Pallet Weight
- 727.200 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions1.53 in x 1.53 in x 2.78 in
Industry Standard(s)Certified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating15 A
ColorBlack, White
InsulationInsulated Body
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 V
Weight0.15 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#18 AWG to #10 AWG
Description - InvoiceLKG CONN, 15A 125V, L1-15R
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.230"-0.720"(5.8-18.3)
Cord Diameter0.220-0.720 in
MaterialNylon
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585177908
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585177907
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
