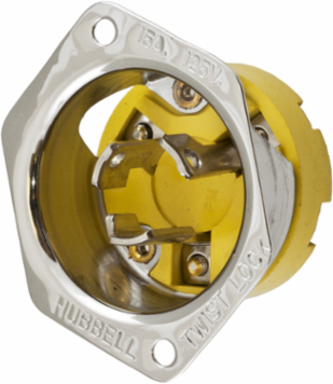

Hubbell Wiring Device-Kellems HBL47CM16 Twist-Lock Marine Grade Flanged Inlet, 15A 125V, 2-Pole 3-Wire, Stainless Steel
- MPN: HBL47CM16
- UPC: 783585237039
- PPN: HBL-HBL47CM16
- UNSPSC: 39121406
CAD
$68.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Stainless Steel Casing, Yellow Melamine
Features
- Heat resistant thermoset construction
- Stainless steel casing
- #5-40 terminal screws
- Mounting screws included
- Corrosion Resistant, Metallic Flange
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.420 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.10 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- L5-15P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 47CM16
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.298x12.298x2.548 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237039
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Industry Standard(s)Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
Amperage Rating15 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL5-15P
Number of Wires3-Wire
Special FeaturesCorrosion Resistant, Metallic Flange
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 V
Voltage Rating Description125 V
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT, CM, 15A 125V L5-15P
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.000 lb.
Lowest Level UOMEach
