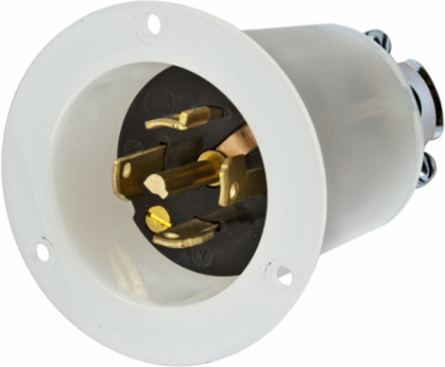

Hubbell Wiring Device-Kellems HBL45985CL Twist-Lock Flanged Inlet 20A 4-Pole 5-Wire 400Hz
- MPN: HBL45985CL
- UPC: 783585238203
- PPN: HBL-HBL45985CL
- UNSPSC: 39121406
CAD
$224.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® VariLoad®, Flanged Inlet, 20A 3-Phase 120/208V AC- 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal Nylon, Unique Center Pin
Features
- VariLoad
- Flanged Inlet
- 20A 3-Phase 120/208V AC- 400Hz
- Unique Center Pin
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.06 in x 3.06 in x 3.64 in
- Industry Standard(s)
- Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 2,000V minimum;Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #14 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Special Features
- Unique Center Pin
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 3 Phase WYE 120/208 VAC
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Width
- 3.06 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 5-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 45985CL
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 4.800x17.800x14.600 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585238203
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height3.64 in
Length3.06 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Wires5-Wire
Size3.06 in x 3.06 in x 3.64 in
StandardListed to UL 498
TypeFlanged Inlet
Wire Size#14 AWG to #10 AWG
Weight0.45 lb.
ConnectivityScrew Terminals
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT, VARILOAD,4P5W,20A120/208V
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A160
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack10 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20 EA
Each - Pack DescriptionEach
NAICS Code335931A102
