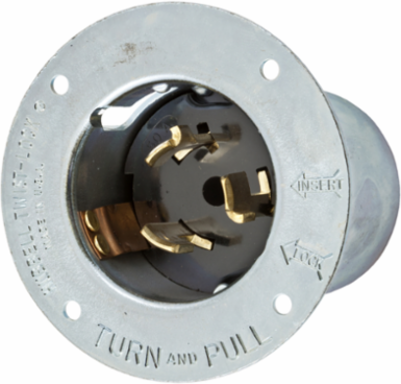

Bryant CS6375 Twist-Lock Flanged Inlet 50A 125/250V AC 3-Pole 4-Wire Steel
- MPN: CS6375
- UPC: 783585828206
- PPN: HBL-CS6375
- UNSPSC: 39121406
CAD
$130.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A, 125V/250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Height
- 2.62 in
- Length
- 2.17 in
- Amperage Rating
- 50 A
- Color
- Metallic
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Wires
- 4-Wire
- Size
- 2.17 in x 3.50 in x 2.62 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Width
- 3.50 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 4-Wire
- Description - Invoice
- LKG INLT, 50A 125/250V, 3P4W
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585828205
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions2.17 in x 3.50 in x 2.62 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#10 AWG to #6 AWG
Weight0.85 lb.
ConnectivityPressure Terminal Screws
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
MaterialSteel, Zinc Plated
BOX SIZE5.300x20.200x9.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585828206
Case Weight6.385 lb.
Lowest Level UOMEach
Pallet Height47.700 in
Pallet Weight729.000 lb.
Certifications
- EU RoHS Indicator
- No
