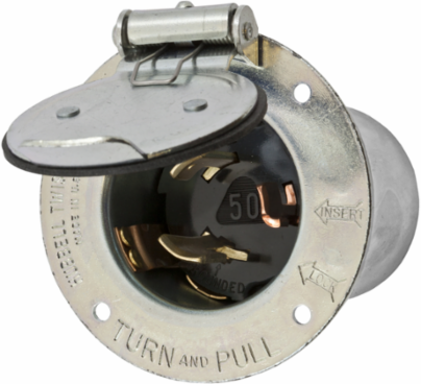

Hubbell Wiring Device-Kellems HBL3767 Twist-Lock Flanged Inlet 50A 250V/600V AC 2-Pole 3-Wire
- MPN: HBL3767
- UPC: 783585236445
- PPN: HBL-HBL3767
- UNSPSC: 39121406
CAD
$308.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V AC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- With Lift Cover
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- 50 Amp Twist-Lock® Devices
- Current / Amperage Rating
- 50 A
- Height
- 2.56 in
- Length
- 2.17 in
- Amperage Rating
- 50 A
- Color
- Metallic
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Wires
- 3-Wire
- Size
- 2.17 in x 3.50 in x 2.56 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
- Width
- 3.50 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 3767
- Material - Mounting Hardware
- Screw Mounting
- Material
- Steel, Zinc Plated
- BOX SIZE
- 5.100x20.600x9.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236445
- Case Weight
- 11.050 lb.
- Lowest Level UOM
- Each
Country of OriginPuerto Rico
Dimensions2.17 in x 3.50 in x 2.56 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
Number of Poles2-Pole
PhaseThree Phase
Special FeaturesWith Lift Cover
TypeFlanged Inlet
Wire Size#8 AWG to #4 AWG
Weight1.05 lb.
ConnectivityPressure Terminal Screws
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT,50A 250VDC/600VAC,2P3W,COV
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
