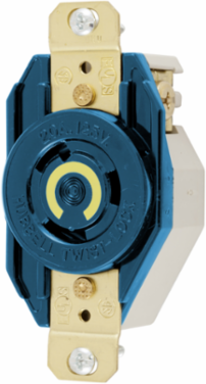

Hubbell Wiring Device-Kellems HBL2310M7 Industrial Twist-Lock Flush Receptacle 20A 125V 2-Pole 3-Wire
- MPN: HBL2310M7
- UPC: 783585005188
- PPN: HBL-HBL2310M7
- UNSPSC: 39121406
CAD
$47.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial Twist-Lock® Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Nylon face, Back and side wired, Blue.
Features
- Durable, high-impact nylon face resistant to abuse
- Wire restraint recess supports back and side wiring, minimizing terminal loosening
- Voltage-specific face color coding for easy device identification and pairing
- Superior all-brass mounting and grounding system offers lower resistance and enhanced corrosion resistance compared to steel systems
- Experience enhanced performance and safety with our Industrial Twist-Lock® Receptacle, featuring a durable, high-impact nylon face, all-brass mounting for lower resistance and superior corrosion resistance, innovative wire restraint for secure connections, and voltage-specific color coding for easy identification, all designed to meet the demands of rigorous industrial applications.
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.23 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.70 in x 1.23 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 VAC
- Connectivity
- Back and Side Wired
- Nema Rating
- L5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A110
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 6.100 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.23 in
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesExperience enhanced performance and safety with our Industrial Twist-Lock® Receptacle, featuring a durable, high-impact nylon face, all-brass mounting for lower resistance and superior corrosion resistance, innovative wire restraint for secure connections, and voltage-specific color coding for easy identification, all designed to meet the demands of rigorous industrial applications.
TypeSingle Flush Receptacle
Wire Size#16 AWG to #8 AWG
Width1.70 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 20A/125V, L5-20R, BLUE
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.900x10.000x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585005188
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
