Hubbell Wiring Device-Kellems HBL2420ST EdgeConnect Twist-Lock Receptacle 20A 3P 250V Size 3.28 x 1.7 x 1.468 Inch
Hubbell Wiring Device-Kellems HBL2420ST EdgeConnect Twist-Lock Receptacle 20A 3P 250V Size 3.28 x 1.7 x 1.468 Inch
- MPN: HBL2420ST
- UPC: 783585788586
- PPN: HBL-HBL2420ST
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$64.29/ EA
Description

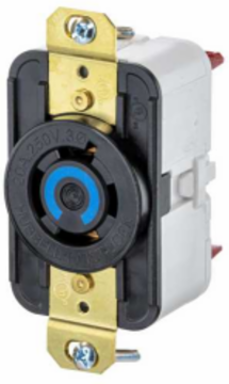

EdgeConnect™ Twist-Lock® Receptacle, 20A 3P 250V, L15-20R, BK, with Spring Termination
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- High-impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Specifications
Specifications
- Country of Origin
- China
- Height
- 1.468 in
- Length
- 3.28 in
- Number of Poles
- 3
- Size
- 3.28 in x 1.7 in x 1.468 in
- Voltage Rating
- 250 VAC
- Width
- 1.7 in
- General Literature Asset 2 Display Text
- Healthcare Product Solutions
- Number Of Poles
- 3
- Class Code
- A08
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50
- Pallet - GTIN - Package
- 70783585788585
Dimensions3.28 in x 1.7 in x 1.468 in
Industry Standard(s)WR Rating
Amperage Rating20 A
Number of Wires4
StandardWR Rating
Wire Size14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextEdgeConnect™ Technology FAQ
Number Of Wires4
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A110
BOX SIZE7.500x12.400x8.700 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783585788586
Case Weight10.250 lb.
Pallet Weight0.000 lb.
