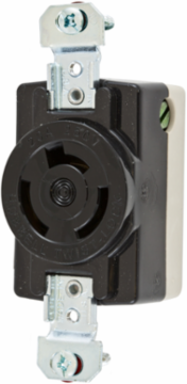

Hubbell Wiring Device-Kellems HBL7310BG Twist-Lock Flush Receptacle 20A 250V AC 3-Pole 3-Wire
- MPN: HBL7310BG
- UPC: 783585333649
- PPN: HBL-HBL7310BG
- UNSPSC: 39121406
CAD
$60.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Nylon face, Back and side wire, Black.
Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.61 in x 1.39 in x 1.28 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.25 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7310BG
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.900x10.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585333649
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.28 in
Length3.61 in
Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingNon-NEMA
Number of Wires3-Wire
Size3.61 in x 1.39 in x 1.28 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating250 VAC
Voltage Rating Description250 VAC
Width1.39 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 2P3W, 20A 3PH 250V, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A160
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.45 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.100 lb.
Lowest Level UOMEach
