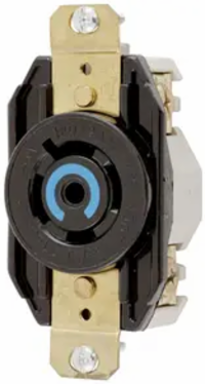

Hubbell Wiring Device-Kellems HBL2510 Twist-Lock Industrial Flush Receptacle 20A 3-Phase Wye 120/208V AC 4-Pole 5-Wire
- MPN: HBL2510
- UPC: 783585235851
- PPN: HBL-HBL2510
- UNSPSC: 39121406
CAD
$72.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Nylon face, Back and side wire, Black.
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.23 in
- Horsepower - Maximum
- 2
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 4-Pole
- Phase
- 3 Phase WYE
- Special Features
- Standard
- Type
- Single Flush Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.30 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- L21-20R
- Number Of Wires
- 5-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2510A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.800x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585235851
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585235850
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextEntertainment Product Solution Guide
Current / Amperage Rating20 A
Height1.23 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL21-20R
Number of Wires5-Wire
Size3.28 in x 1.70 in x 1.23 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Voltage Rating3 Phase WYE 120/208 VAC
Voltage Rating Description3 Phase WYE 120/208 VAC
Width1.70 in
Display SizeStandard Sized Product
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 20A 3PH 120/208V, L21-20R, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.340 lb.
Lowest Level UOMEach
Pallet Height44.800 in
Pallet Weight877.800 lb.
NAICS Code335931A102
