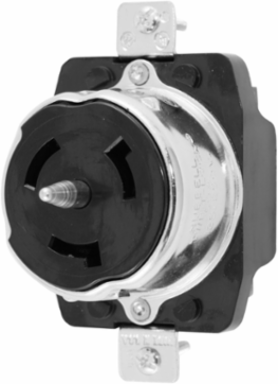

Bryant CS6369 Twist-Lock Industrial Receptacle, 50A 125/250V, 3-Pole 4-Wire, Screw Terminal, Phenolic
- MPN: CS6369
- UPC: 783585828107
- PPN: HBL-CS6369
- UNSPSC: 39121406
CAD
$130.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Features
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Height
- 2.36 in
- Length
- 2.69 in
- Amperage Rating
- 50 A
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Device
- Wire Size
- #10 AWG to #6 AWG
- Weight
- 0.80 lb.
- Connectivity
- Screw Terminals
- Number Of Wires
- 4-Wire
- Description - Invoice
- LKG RCPT, 50A 125/250V, 3P4W
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585828106
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions2.69 in x 2.12 in x 2.36 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires4-Wire
Size2.69 in x 2.12 in x 2.36 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498;WR Rating
Voltage Rating125/250 VAC
Voltage Rating Description125/250V AC
Width2.12 in
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
MaterialPhenolic
BOX SIZE6.000x10.300x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585828107
Case Weight3.313 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1368.000 lb.
Certifications
