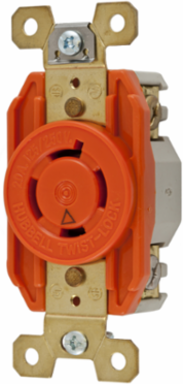

Hubbell Wiring Device-Kellems IG2410 Isolated Ground Twist-Lock Receptacle, 20A 125/250V, 3-Pole 4-Wire, Nylon, Orange
- MPN: IG2410
- UPC: 783585872360
- PPN: HBL-IG2410
- UNSPSC: 39121406
CAD
$100.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Single Flush Receptacle, 20A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-20R, Screw Terminal, Nylon, Orange.
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- Grounding
- Isolated Ground
- Dielectric Voltage
- 2,000 V minimum
- NEMA Rating
- 14-20R
- Dimensions
- 3.28 in x 1.70 in x 1.23 in
- Terminal Accommodation
- #16 AWG - #8 AWG copper wire
- Material Face
- Nylon
- Material Contacts
- Brass
- Material Mounting Strap
- Brass
- Terminal Identification
- Per UL 498
- Standards
- CSA C22.2 No.42; Fed.Spec. W-C-596; UL 498; WR Rating
- Application
- Heavy Duty Industrial
Voltage125/250 VAC
Number of Wires4-Wire
Current InterruptingCertified for full rated current
Operating Temperature-40°C to 75°C
ConnectivityBack and Side Wired
Weight0.30 lb.
PhaseSingle Phase
Material BaseRTP
Material Terminal Screws#10-32 Brass
FlammabilityV2 or better per UL94/CSA 22.2 No.17
Moisture ResistanceIP20
Country of OriginUS
