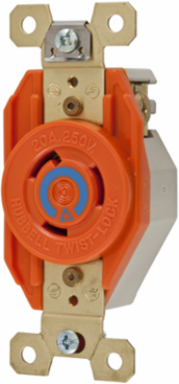

Hubbell Wiring Device-Kellems IG2320 Twist-Lock® Isolated Ground Receptacle, 20A 250V, 2-Pole, Orange
- MPN: IG2320
- UPC: 783585872223
- PPN: HBL-IG2320
- UNSPSC: 39121406
CAD
$63.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Devices, Single Flush Receptacle 20A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-20R, Isolated ground, nylon, Orange
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- IG2320 AutoCAD Drawing
- Current / Amperage Rating
- 20 A
- Height
- 1.24 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Amperage Rating
- 20 A
- Color
- Orange
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Width
- 1.70 in
- Connectivity
- Back and Side Wired
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire Grounding
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG2320A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.400x9.200x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585872223
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585872222
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions3.28 in x 1.70 in x 1.24 in
Horsepower - Maximum2
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating6-20R
Number of Wires3-Wire Grounding
Size3.28 in x 1.70 in x 1.24 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Wire Size#16 AWG to #8 AWG
Weight0.25 lb.
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, IG, 20A 250V, L6-20R, OR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.785 lb.
Lowest Level UOMEach
Pallet Height44.800 in
Pallet Weight806.400 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
