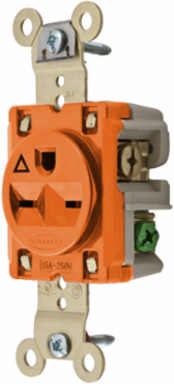

Hubbell Wiring Device-Kellems IG5661 Isolated Ground Receptacle 2-Pole 3-Wire 15A 250V Orange 3.28 x 1.62 x 1.19 Inch
- MPN: IG5661
- UPC: 783585880563
- PPN: HBL-IG5661
- UNSPSC: 39121406
CAD
$89.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Orange, Single Pack
Features
- Triangle marking on face indicates isolated ground
- Patented bypass contact design
- Isolated Ground
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Wattage
- 1875 W
- Dielectric Voltage
- Withstands 2,000 V minimum
- Operating Temperature Range
- -40°C to 75°C maximum continuous
- Width
- 1.62 in
- Dimensions
- 3.28 in x 1.62 in x 1.19 in
- Material
- Nylon
- Power Contacts Material
- .037 in. (.9 mm) Brass
- Clamp Material
- Nickel plated brass
- Mounting Strap Material
- .050 in. (1.3 mm) Brass
- Mounting Screws Material
- Stainless steel
- NEMA Rating
- 6-15R
- Color
- Orange
Voltage250 V
Number of Wires3-Wire
Current InterruptingCertified for current interrupting at full rated current
Terminal Accommodation#14 - #10 AWG copper stranded or solid conductor
Length3.28 in
Height1.19 in
PhaseSingle Phase
Base MaterialPBT
Ground Contact MaterialBrass
Terminal Screws MaterialPlated brass
Self-grounding Clip MaterialStainless steel
Flammability RatingsFace UL 94V-2, Base UL 94V-0
ComplianceCSA 22.2 No. 42; UL Listed UL498 E2186; Fed Spec WC596G; NEMA WD-6
Country of OriginUSA
