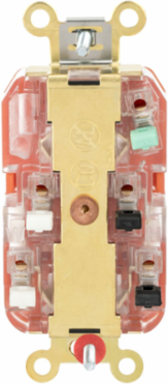

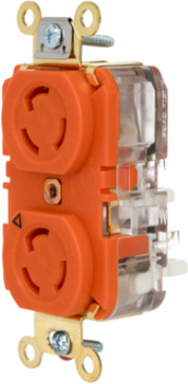

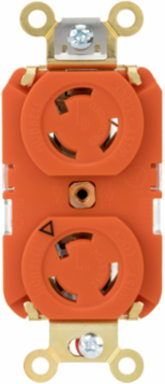

Hubbell Wiring Device-Kellems IG4700AST Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Duplex Receptacle, Isolated Ground, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screwless Terminal, Orange
- MPN: IG4700AST
- UPC: 783585730882
- PPN: HBL-IG4700AST
CAD
$104.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Duplex Receptacle, Isolated Ground, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screwless Terminal, Orange
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- EdgeConnect™ Technology, Screwless Termination
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42;WR Rating
- Flammability
- HB or better per UL94/CSA 22.2 No.0.17
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology
- Application
- Industrial
- Contact
- Brass
- Environmental Conditions
- IP20 Suitability
- Nema Rating
- L5-15R
- Number Of Wires
- 3
- Style
- Locking Devices
- Type
- Receptacle
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
ColorOrange
Width1.800 in
SizeStandard Sized Product
Voltage Rating125 VAC
General Literature Asset 2 Display TextEdgeConnect™ Termination vs Standard Push Wire
ConnectionEdgeConnect™ Screwless Termination
Dielectric StrengthWithstands 2,000V minimum
Mounting TypeScrew Mount
Number Of Poles2
PhaseSingle Phase
Temperature RatingMaximum Continuous 75°C, Minimum -40°C (w/o impact)
Class CodeA08
Harmonization Code8536698000
Sub Class CodeA08A110
SeriesEdgeConnect™ Twist-Lock® Series
BOX SIZE3.900x9.500x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585730882
Case Weight31.350 lb.
