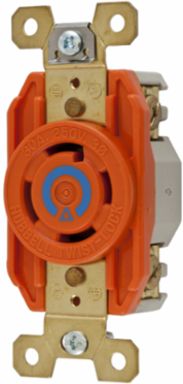

Hubbell Wiring Device-Kellems IG2720 Isolated Ground Twist-Lock Receptacle, 30A 250V, 3-Pole 4-Wire, Orange
- MPN: IG2720
- UPC: 783585872445
- PPN: HBL-IG2720
- UNSPSC: 39121406
CAD
$150.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacles, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Orange
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Connectivity
- Back and Side Wired Screw Terminals
- Operating Temperature
- -40°C to 75°C
- Dimensions
- 3.28 in x 1.7 in x 1.23 in
- Material
- Nylon, Brass
- Mounting Hardware Material
- Brass
- Class Code
- A08
- Compliance
- UL 498 Listed, CSA C22.2 No.42, Fed.Spec. W-C-596, RoHS Compliant
Voltage250 VAC
Number of Wires4-Wire
NEMA RatingL15-30R
Dielectric StrengthWithstands 2,000V minimum
Wire Size Range#16 AWG to #8 AWG
Weight0.35 lb.
Terminal TypeScrew Terminal
Country of OriginUS
Sub Class CodeA08A110
