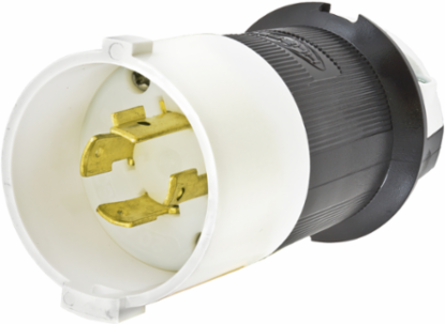

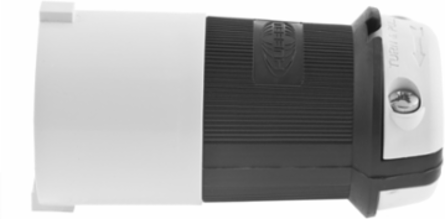

Hubbell Wiring Device-Kellems HBL2431S Twist-Lock Safety-Shroud Male Plug 20A 3-Phase 480V AC, NEMA L16-20P
- MPN: HBL2431S
- UPC: 783585234625
- PPN: HBL-HBL2431S
- UNSPSC: 39121402
CAD
$76.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Safety-Shroud® Male Plug, 20A 3-Phas Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20P, Screw Terminal Nylon Body PBT Shroud
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2431S AutoCAD Drawing
- Current / Amperage Rating
- 20 A
- Height
- 4.21 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.40 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG S/SHRD PLUG, 20A 3P 480V, L16-20P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585234624
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions2.33 in x 2.23 in x 4.21 in
Horsepower - Maximum5
Length2.33 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL16-20P
Number of Wires4-Wire
Size2.33 in x 2.23 in x 4.21 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating3-Phase Delta 480 VAC
Voltage Rating Description3-Phase Delta 480 VAC
Width2.23 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL16-20P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A120
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE5.800x12.400x5.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585234625
Case Weight2.470 lb.
Lowest Level UOMEach
Pallet Height46.400 in
Pallet Weight950.400 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Contact Manufacturer
