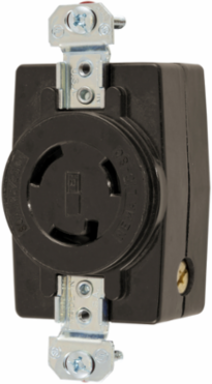

Hubbell Wiring Device-Kellems HBL2660 Twist-Lock Receptacle, 30A, 125/250V AC, 3-Pole, Nylon, Black
- MPN: HBL2660
- UPC: 783585456775
- PPN: HBL-HBL2660
- UNSPSC: 39121406
CAD
$87.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30R, Nylon face, back and side wire, Black
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 1.910 in
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Amperage Rating
- 30 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #16 AWG to #8 AWG
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG RCPT, 30A 125/250V, L10-30R, BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- (in)
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL10-30R
Number of Wires3-Wire
Special FeaturesStandard
Voltage Rating125/250 VAC
ConnectivityBack and Side Wired Screw Terminals
Nema RatingL10-30R
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585456775
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
