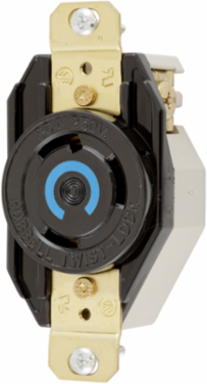

Hubbell Wiring Device-Kellems HBL2620RT Twist-Lock® Receptacle, 30A, 250VAC, 2-Pole, 3 Wire Grounding, Nylon, Black
- MPN: HBL2620RT
- UPC: 783585234496
- PPN: HBL-HBL2620RT
- UNSPSC: 39121406
CAD
$93.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Nylon face, Ring terminal connection, Black
Features
- Accepts ring terminals
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Accepts Ring Terminals
Specifications
Additional
- Amperage
- 30 A
- Poles
- 2-Pole
- Grounding
- Yes
- Length
- 3.28 in
- Height
- 1.31 in
- Material
- Nylon
- Connectivity
- Ring Terminal
- Contacts Material
- Brass
- Mounting Strap Material
- Brass
- Dielectric Strength
- Withstands 2,000 V minimum
- Listings
- UL 498; Fed.Spec. W-C-596; CSA C22.2 No.42
- EU RoHS Indicator
- Yes
Voltage250 V AC
Number of Wires3-Wire Grounding
Operating Temperature-40°C to 75°C
Width1.70 in
Size3.28 in x 1.70 in x 1.31 in
Material - Mounting HardwareScrew Mounting
Base MaterialGlass-Reinforced thermoplastic polyester (RTP)
Terminal Screws#10 - 32 Brass
ColorBlack
StandardCSA C22.2 No.42; Fed.Spec. W-C-596; UL 498; WR Rating
NEMA RatingL6-30R
