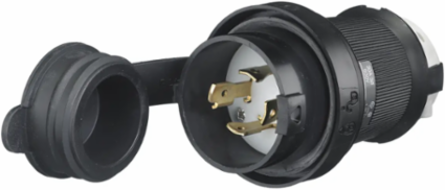

Hubbell Wiring Device-Kellems HBL2741SW Twist-Lock Watertight Male Plug, 30A 600V AC, 3-Pole 4-Wire, 2.94x4.40 Inch
- MPN: HBL2741SW
- UPC: 783585232003
- PPN: HBL-HBL2741SW
- UNSPSC: 39121402
CAD
$187.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30P, Screw Terminal , Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- Impact resistant shroud protects blades against bending and breaking.
- Reduces exposure to arcing when connecting or disconnecting under load.
- Superior cord grip design protects terminations from excess strain.
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Operating Temperature
- -40b0C to 75b0C continuous without impact
- Dielectric Voltage
- 2000 V minimum
- Amperage Rating
- 30 A
- Cable Range
- 0.350 in - 1.150 in
- Material
- Composite, Brass, PBT, Santoprene, Neoprene
- NEMA Rating
- L17-30P
Voltage600 V AC
Number of Wires4-Wire
Wire Size#16 AWG to #8 AWG
PhaseThree Phase
Size / Dimensions2.94 in x 2.94 in x 4.40 in
ConnectivityPressure Terminal Screws
Standards ComplianceUL Listed, CSA Certified to Type 4, 4X, 12, RoHS Compliant
