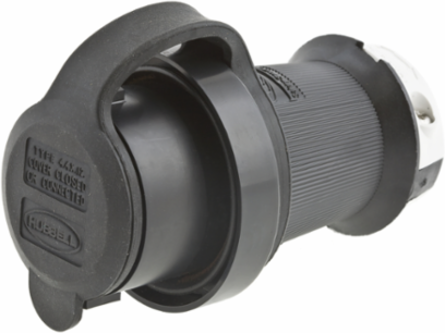

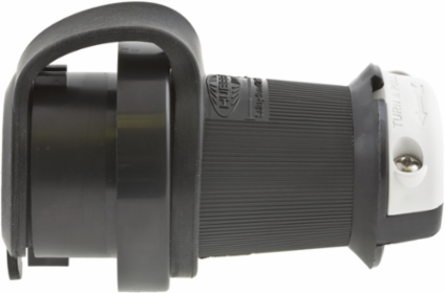

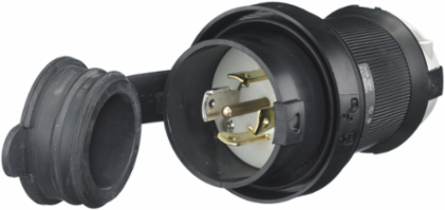

Hubbell Wiring Device-Kellems HBL2831SW Locking Plug, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire, Watertight
- MPN: HBL2831SW
- UPC: 783585128924
- PPN: HBL-HBL2831SW
- UNSPSC: 39121403
CAD
$355.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-30P, Screw Terminal, Black PBT housing, White PBT clamps
Features
- UL Type 4X Environmental seal protects connection while in use.
- Impact resistant shroud protects blades against bending and breaking.
- Reduces exposure to arcing when connecting or disconnecting under load.
- Superior cord grip design protects terminations from excess strain.
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.94 in x 2.94 in x 4.40 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L23-30P
- Number of Wires
- 5-Wire
- Size
- 2.94 in x 2.94 in x 4.40 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Voltage Rating
- 3 Phase WYE 347/600 VAC
- Voltage Rating Description
- 3 Phase WYE 347/600 VAC
- Engineering Drawing 1 Display Text
- HBL2831SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 4-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHRD PLUG, 30A, L23-30P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height4.40 in
Length2.94 in
Amperage Rating30 A
ColorBlack, White
Environmental ConditionsWatertight
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesShrouded Watertight Construction
TypePlugs
Wire Size#16 AWG to #8 AWG
Width2.94 in
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL23-30P
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialComposite
BOX SIZE6.300x10.375x8.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585128924
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Contact Manufacturer
