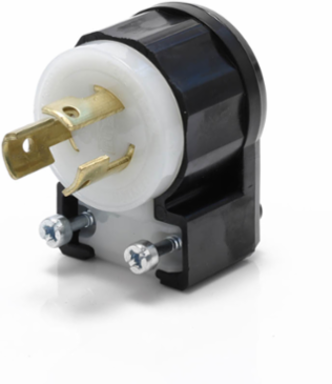

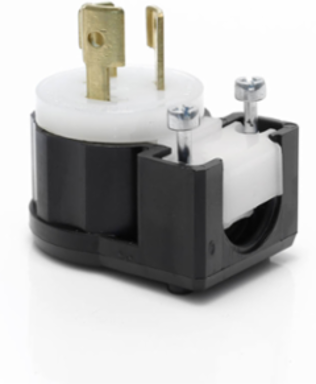

Leviton 4720-CA Locking Plug 15 Amp 125 Volt NEMA L5-15P Industrial Grade Black & White
Leviton 4720-CA Locking Plug 15 Amp 125 Volt NEMA L5-15P Industrial Grade Black & White
- MPN: 4720-CA
- UPC: 078477799758
- PPN: LEV-4720-CA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$36.55/ EA
Description

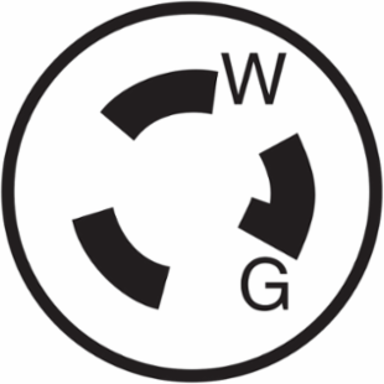

15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Angle - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
CSA C22.2 No. 42File LR-406
NOM Certified057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- .240 - .700
- Terminal Accom.
- 18-10 AWG
- Wire Gauge
- 18-10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
FeatureAngled
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
