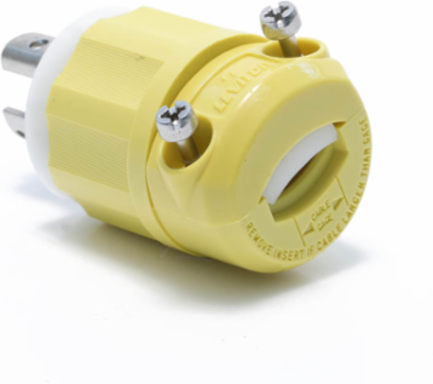

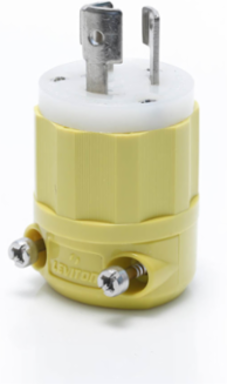

Leviton 47CM-20C Locking Plug 15 Amp 125 Volt NEMA L5-15P Corrosion-Resistant Yellow-White
- MPN: 47CM-20C
- UPC: 078477795507
- PPN: LEV-47CM-20C
CAD
$39.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- For use in marine and industrial environments
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Blades/Contacts
- Nickel-Plated Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Terminal Screws
- Nickel-Plated Brass 8-32
Back CoverThermoplastic
Body MaterialSuper Tough ST801 Nylon
ColorYellow-White
Face MaterialNylon
Mechanical Specifications
- Cord Range
- .218 - .430
- Screw Terminal Torque
- 12-14 in-lbs
- Terminal ID

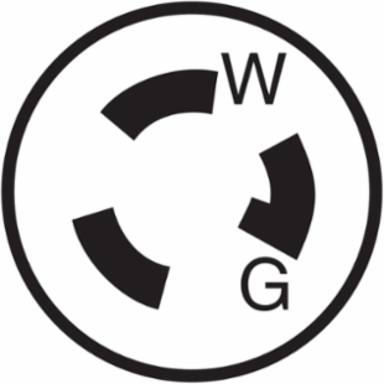

- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-10 AWG
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
