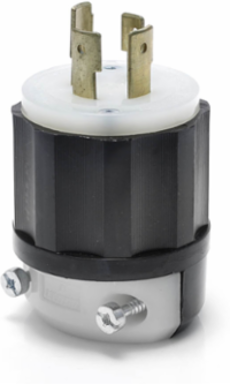

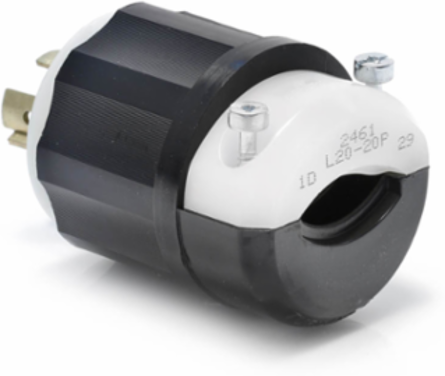

Leviton 2461 Locking Plug, 20 Amp, 347/600 Volt, Industrial Grade, Black & White
Leviton 2461 Locking Plug, 20 Amp, 347/600 Volt, Industrial Grade, Black & White
- MPN: 2461
- UPC: 078477808283
- PPN: LEV-2461
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$74.89/ EA
Description

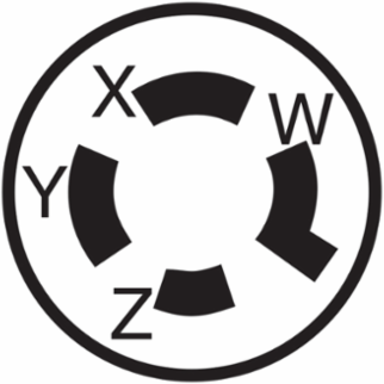

20 Amp, 347/600 Volt 3PY, NEMA L20-20P, 4P, 4W, Locking Plug, Industrial Grade, Non-Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- .595 - .895
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 10-14 in-lbs
Product IDRatings are permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire Gauge14-10 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
Device TypeLocking Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 4
Current InterruptingCertified for current interrupting at full rated current
GroundingNon-Grounding
Pole4
Voltage347/600 VAC
