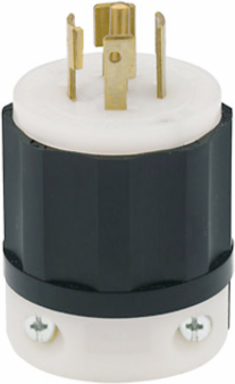

20 Amp Locking Plug, NEMA L23-20P, 347/600 Volt, 4P, 5W, Industrial Grade
Leviton

Leviton 2531 20 Amp Locking Plug, NEMA L23-20P, 347/600 Volt, 4P, 5W, Industrial Grade

  • MPN: 2531
  • UPC: 078477808535
  • PPN: LEV-2531

CAD

$79.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

20 Amp Locking Plug, NEMA L23-20P, 347/600 Volt, 4P, 5W, Industrial Grade

Documentation & Downloads

Specifications

Standards and Certifications

Warranty
Limited Lifetime Warranty
CSA C22.2 No. 42
File LR-406
ANSI
C-73
NEMA
WD-6
NOM057
UL498File E13393
UL Fed Spec WC-596File E13393

Material Specifications

Wire Module
Nylon
Clamp Insert
Nylon
Back Cover
Thermoplastic
Body Material
Impact Modified Nylon
Assembly Screws
Steel, Zinc Plated
ColorBlack-White
Blades/ContactsSolid Brass
Terminal ScrewsBrass
Cord-ClampNylon

Mechanical Specifications

Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Product ID
Ratings are permanently marked on device
Terminal Accom.
18-10 AWG
Cord Range.595 - .895
Wire Gauge14-10 AWG

Product Features

Color
Black-White
Brand
Black and White
NEMA
L23-20P
Device TypeLocking Plug
Country Of OriginUnited States

Environmental Specifications

Environment
Dry
Operating Temperature
-40°C to 60°C
FlammabilityRated HB or better UL94

Electrical Specifications

Amperage
20 A
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Voltage
347/600 VAC
Phase
3-Phase WYE
Wire5
Current InterruptingCertified for current interrupting at full rated current
Pole4
GroundingGrounding

AC Horsepower Ratings

At Rated Voltage
N/A
