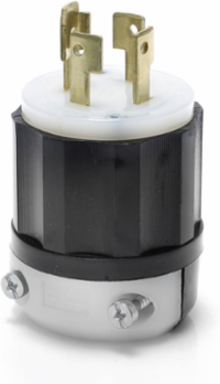

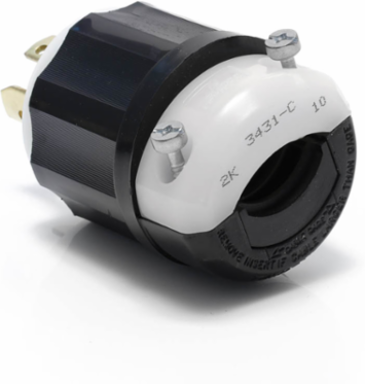

Leviton 3431-C Locking Plug, 30 Amp, 120/208 Volt, Industrial Grade, Black & White
Leviton 3431-C Locking Plug, 30 Amp, 120/208 Volt, Industrial Grade, Black & White
- MPN: 3431-C
- UPC: 078477816981
- PPN: LEV-3431-C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$93.41/ EA
Description

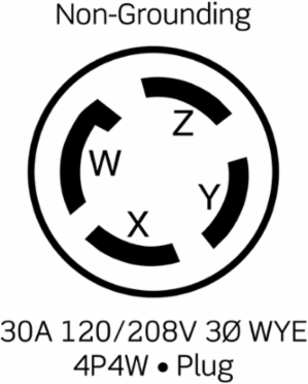

30 Amp, 120/208 Volt 3-Phase Y, Non-NEMA, 4P, 4W, Locking Plug, Industrial Grade, Non-Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Amperage
- 30 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Non-Grounding
- Pole
- 4
- Temperature Rise
- Max 30C at 250 cycles OL at 200 pct rated current
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 120/208 VAC
- Wire Gauge
- 14-8 AWG
Cord Range.595 - 1.150
Dielectric VoltageWithstands 2000V per UL498
Phase3-Phase WYE
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-10 AWG
Torque Range10-14 in-lbs
Wire4
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Black and White
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
