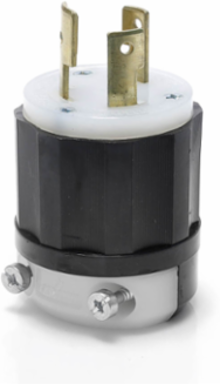

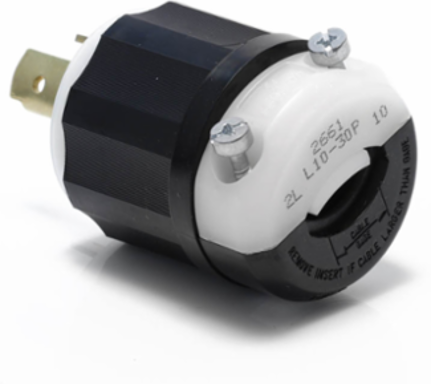

Leviton 2661 Locking Plug 30 Amp 125/250 Volt NEMA L10-30P Industrial Grade Black & White
- MPN: 2661
- UPC: 078477807910
- PPN: LEV-2661
CAD
$86.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

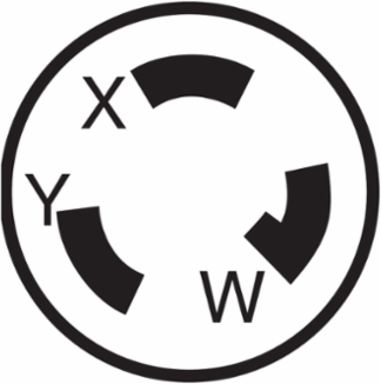

30 Amp, 125/250 Volt, NEMA L10-30P, 3P, 3W, Locking Plug, Industrial Grade, Non-Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Captive, quick drive assembly screws for faster assembly
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13393 |
| Warranty | Limited Lifetime Warranty Warranty |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL498 | File E13393 |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Blades/Contacts | Solid Brass |
| Clamp Insert | Nylon |
| Cord-Clamp | Nylon |
| Wire Module | Nylon |
| Back Cover | Thermoplastic |
|---|---|
| Body Material | Impact Modified Nylon |
| Color | Black-White |
| Terminal Screws | Brass |
Mechanical Specifications
| Cord Range | .385 - .930 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Wire Gauge | 16-8 AWG |
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Black and White |
|---|
| Device Type | Locking Plug |
|---|
Environmental Specifications
| Environment | Dry |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated HB or better UL94 |
|---|
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 3 |
| Voltage | 125/250 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Non-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 2 HP L-L / 2 HP L-N |
|---|
