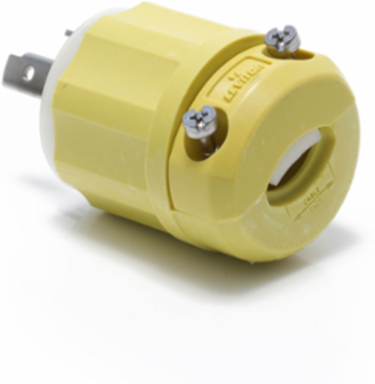

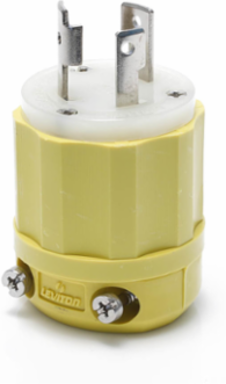

Leviton 26CM-11 Locking Plug, 30 Amp, 125 Volt, Industrial Grade, Corrosion Resistant, Yellow & White
- MPN: 26CM-11
- UPC: 078477808009
- PPN: LEV-26CM-11
CAD
$74.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

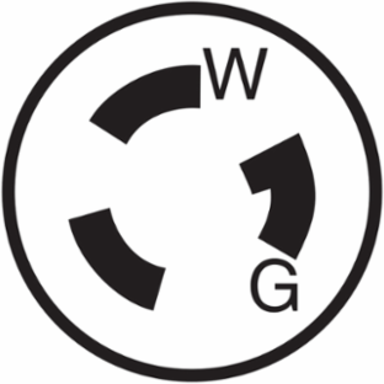

30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Captive, quick drive assembly screws for faster assembly
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- For use in marine and industrial environments
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13393 |
| NEMA | WD-6 |
|---|---|
| UL | 498 |
| Warranty | Limited Lifetime Warranty Warranty |
Material Specifications
| Assembly Screws | Stainless Steel 300 |
|---|---|
| Blades/Contacts | Nickel-Plated Brass |
| Clamp Insert | Nylon |
| Cord-Clamp | Nylon |
| Terminal Screws | Nickel-Plated Brass 8-32 |
| Back Cover | Thermoplastic |
|---|---|
| Body Material | Super Tough ST801 Nylon |
| Color | Yellow-White |
| Face Material | Nylon |
Mechanical Specifications
| Cord Range | .218 - .430 |
|---|---|
| Screw Terminal Torque | 10-14 in-lbs |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Wire Gauge | 16-8 AWG |
Product Features
| Brand | Black and White |
|---|
Environmental Specifications
| Environment | Corrosive |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-2 per UL 94 |
|---|
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C at 250 cycles OL at 200 pct rated current |
| Wire | 3 |
