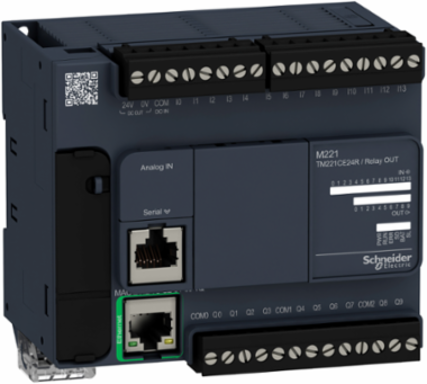

Schneider Electric TM221CE24R Modicon M221 Logic Controller 24 I/O, Ethernet, 0.395kg, IP20
- MPN: TM221CE24R
- PPN: SCH-TM221CE24R
CAD
$519.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete inputs and 10 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Singapore, Taiwan, United States
Depth70 mm
Communications & Management Attributes
- Communication Port Protocol
- USB port USB - SoMachine-Networknon isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet
Communication ServiceModbus TCP server, Modbus TCP slave device, DHCP client, Modbus TCP client, Ethernet/IP adapter
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB 2.0non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45
- Maximum Current Per Output Common
- 4 A COM 27 A COM 0, 7 A COM 1
- Maximum Power Consumption In Va
- 58 VA 100...240 V with max number of I/O expansion module35 VA 100...240 V without I/O expansion module
Maximum Cable Distance Between Devicesshielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital inputunshielded cable <1 m analog input
Maximum Size Of Object Areas255 %TM timers, 512 %M memory bits, 8000 %MW memory words, 255 %C counters, 512 %KW constant words
Minimum Load1 mA 5 V DC relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Clock Drift
- <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
- Control Signal Type
- A/B, single phase, pulse/direction
- Electrical Durability
- 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive100000 cycles AC-12, 120 V, 240 VA, resistive100000 cycles AC-12, 240 V, 480 VA, resistive300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
- Insulation
- between input and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputsbetween supply and ground 1500 V AC, between sensor power supply and ground 500 V AC, between input and ground 500 V AC, between output and ground 1500 V ACbetween supply and internal logic 2300 V AC, between sensor power supply and internal logic 500 V AC, between output and internal logic 2300 V AC, between Ethernet terminal and internal logic 500 V AC, between supply and sensor power supply 2300 V AC
- Memory Capacity
- 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Response Time
- 10 ms turn-off output5 µs turn-off, I0, I1, I6, I7 fast input, 35 µs turn-off, I2...I5 input, 10 ms turn-on output, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input
- Voltage State 0 Guaranteed
- <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
- Certificate Agency
- LR, cULus, ABS, DNV-GL, EAC, RCM, CE, UKCA, cULus HazLoc
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.227720225241003, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 20.856629220993124
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Data Backed Up
- 256 kB built-in flash memory backup of application and data
- Environmental Characteristic
- ordinary and hazardous location
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task
- Immunity To Microbreaks
- 10 ms
- Lsb Value
- 10 mV
- Mechanical Durability
- 20000000 cycles relay output
- Port Ethernet
- 10BASE-T/100BASE-TX 1 100 m copper cable
- Product Or Component Type
- logic controller
- Range Of Product
- Modicon M221
- Regulation Loop
- adjustable PID regulator up to 14 simultaneous loops
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2...2.7 GHz IEC 61000-4-3
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz IEC 61000-4-8
- Sensor Power Supply
- 24-24 V DC 250 mA supplied by the controller
- Software Version
- v6.2.2
- Supply Voltage Limits
- 85-264 V
- Switching Frequency
- 20 switching operations/minute with maximum load
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s USB
- Pep Code
- ENVPEP1403012EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 110 mm
- Discrete I/O Number
- 24
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Configurable Filtering Time0 ms input, 3 ms input, 12 ms input
Electrical Connectionremovable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputsmini B USB 2.0 connector for a programming terminal
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT1 LED per channel (green) for I/O state, 1 LED (green) for SLEthernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status)
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Vibration Resistance1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting1 gn 8.4-150 Hz symmetrical rail
Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Carbon Footprint Of The Distribution Phase [A4]1.2904597443487136, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.009580942808830527
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]99 kg CO2 eq., 98.57894281532788
Local Publishable Date2026-03-26
Stocking FlagN
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionStandard
Market SegmentationIndustrial
Conversion Time1 ms per channel + 1 controller cycle time analog input
Data Storage Equipment2 GB SD card optional)
Exct Time For Event Task60 µs response time
Execution Time Per Instruction0.2 µs Boolean
Inrush Current40 A
MarkingCE
Network Frequency50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typewithout protection 5 A
Realtime Clockwith
Reset Time1 s
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
ReturnabilityYes
Shock Resistance98 m/s² 11 ms
Supplyserial)serial link supply 5 V, <200 mA
Sustainable PackagingYes
Total Lifecycle Carbon Footprint122 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage100...240 V AC
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture)14 (remote I/O-Architecture)
Package Weight(Lbs)630.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403012EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint121.96333294871954
Environmental DisclosureENVPEP1403012EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M221
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Maximum Current Per Output Common
- 4 A COM 27 A COM 0, 7 A COM 1
- Discrete Output Number
- 10 relay
- Discrete Output Voltage
- 5...125 V DC5...250 V AC
- Power Supply Output Current
- 0.52-0.52 A 5 V expansion bus0.16-0.16 A 24 V expansion bus
Discrete Output Current2 A
Discrete Output Typerelay normally open
Output Voltage Limits125 V DC277 V AC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms input, 3 ms input, 12 ms input
Surge Withstand1 kV power lines (AC) differential mode IEC 61000-4-51 kV relay output differential mode IEC 61000-4-50.5 kV power lines (DC) common mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-51 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5
Input Attributes
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
- Analogue Input Resolution
- 10 bits
- Discrete Input Current
- 7 mA discrete input5 mA fast input
- Discrete Input Number
- 14 , discrete input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Analogue Input Number2 0...10 V
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V
Input Impedance3.4 kOhm discrete input100 kOhm analog input4.9 kOhm fast input
Batteries & Runtime Attributes
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
