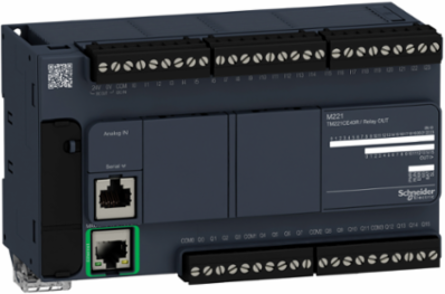

Schneider Electric TM221CE40R Modicon M221 Logic Controller 40 I/O, Ethernet, 0.456 kg
- MPN: TM221CE40R
- PPN: SCH-TM221CE40R
CAD
$675.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete inputs and 16 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 160mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.456kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Features
- Outfitted with 24 digital inputs and 16 relay outputs on a single chassis, this programmable logic controller (PLC) offers extensive localized control without the expense of immediate expansion modules. It provides machine builders and automation engineers with the perfect density to manage complex conveyor arrays, packaging systems, and multi-stage pump panels from a single, space-saving footprint.
- Featuring an integrated RJ45 Ethernet port (supporting Modbus TCP) alongside an RS485 serial link, this controller enables instant remote programming, data logging, and HMI connectivity. It allows plant operators to effortlessly push machine diagnostics to a local SCADA system or factory network, streamlining line monitoring and drastically reducing troubleshooting downtime.
- Equipped with 4 high-speed counters (HSC) rated up to 100 kHz, the unit processes high-frequency inputs from rotary encoders and proximity sensors with extreme precision. This real-time processing capability makes it highly effective for precise cutting-to-length, packaging sorting, and high-speed indexing applications where standard PLC scan cycles fall short.
- Featuring a front-facing SD card slot for instant application cloning and firmware updates, this PLC enables maintenance crews to deploy programs to replacement hardware in seconds without opening a laptop. Paired with a physical Run/Stop switch, it provides field personnel with foolproof, direct manual control over execution states during critical system commissioning and lockout-tagout sequences.
Documentation & Downloads
Specifications
Key Specifications
- Discrete Output Type
- relay normally open
- Discrete Output Number
- 16 relay
- Discrete Output Current
- 2 A
- Analogue Input Number
- 2 0...10 V
- Discrete Input Number
- 24 , discrete input IEC 61131-2 Type 1
Range Of ProductModicon M221
Product Or Component Typelogic controller
Discrete Output Voltage5...125 V DC || 5...250 V AC
[Us] Rated Supply Voltage100...240 V AC
Complementary
- Network Frequency
- 50/60 Hz
- Data Backed Up
- 256 kB built-in flash memory backup of application and data
- Input Impedance
- 3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
- Maximum Cable Distance Between Devices
- shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Port Ethernet
- 10BASE-T/100BASE-TX 1 100 m copper cable
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
- Protection Type
- without protection 5 A
- Backup Time
- 1 year 25 °C by interruption of power supply)
- Reset Time
- 1 s
- Maximum Number Of I/O Expansion Module
- 7 local || 14 remote
- Net Weight
- 0.456 kg
- Configurable Filtering Time
- 0 ms input || 3 ms input || 12 ms input
- Maximum Size Of Object Areas
- 8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 255 %C counters || 512 %M memory bits
- Conversion Time
- 1 ms per channel + 1 controller cycle time analog input
- Control Signal Type
- single phase || A/B || pulse/direction
- Integrated Connection Type
- USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
- Sensor Power Supply
- 24-24 V DC 250 mA supplied by the controller
- Electrical Durability
- 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Response Time
- 35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task
- Realtime Clock
- with
- Width
- 160 mm
- Minimum Load
- 1 mA 5 V DC relay output
- Insulation
- between input and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between supply and ground 1500 V AC || between sensor power supply and ground 500 V AC || between input and ground 500 V AC || between output and ground 1500 V AC || between supply and internal logic 2300 V AC || between sensor power supply and internal logic 500 V AC || between output and internal logic 2300 V AC || between Ethernet terminal and internal logic 500 V AC || between supply and sensor power supply 2300 V AC
- Supply
- serial)serial link supply 5 V, <200 mA
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Discrete Input Logicsink or source (positive/negative)
Exct Time For Event Task60 µs response time
Electrical Connectionremovable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
Height90 mm
Inrush Current40 A
Communication ServiceDHCP client || Modbus TCP client || Ethernet/IP adapter || Modbus TCP server || Modbus TCP slave device
Maximum Current Per Output Common7 A
Clock Drift<= 30 s/month 25-25 °C
Communication Port ProtocolUSB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
MarkingCE
Discrete I/O Number40
Regulation Loopadjustable PID regulator up to 14 simultaneous loops
Power Supply Output Current0.52-0.52 A 5 V expansion bus || 0.24-0.24 A 24 V expansion bus
Voltage State 0 Guaranteed<= 5 V input
Output Voltage Limits125 V DC || 277 V AC
Memory Capacity256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Voltage State 1 Guaranteed>= 15 V input
Supply Voltage Limits85-264 V
Execution Time Per Instruction0.2 µs Boolean
Mechanical Durability20000000 cycles relay output
Absolute Accuracy Error+/- 1 % of full scale analog input
Local SignallingPWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || I/O state 1 LED per channel green) || SL 1 LED green) || ACT Ethernet network activity green) || Link (Link Status) Ethernet network link yellow)
Discrete Input Current7 mA discrete input || 5 mA fast input
Analogue Input Resolution10 bits
Lsb Value10 mV
Depth70 mm
Data Storage Equipment2 GB SD card optional)
Maximum Power Consumption In Va70 VA 100...240 V with max number of I/O expansion module || 41 VA 100...240 V without I/O expansion module
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Switching Frequency20 switching operations/minute with maximum load
Environment
- Product Certifications
- DNV-GL || EAC || ABS || cULus || LR || RCM || CE || UKCA || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Pollution Degree
- <= 2
- Shock Resistance
- 98 m/s² 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Environmental Characteristic
- ordinary and hazardous location
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Storage Altitude0-3000 m
Ambient Air Temperature For Operation-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403012EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1403012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
