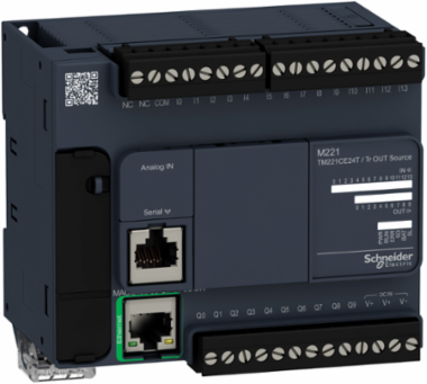

Schneider Electric TM221CE24T Modicon M221 Logic Controller, 24 I/O, 24V DC, Ethernet
- MPN: TM221CE24T
- PPN: SCH-TM221CE24T
CAD
$519.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TM221 controller is part of the Modicon M221 Logic controller range. It has 24 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan, United States
Depth70 mm
Communications & Management Attributes
- Communication Port Protocol
- USB port USB - SoMachine-Networknon isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet
Communication ServiceModbus TCP slave device, Modbus TCP server, Modbus TCP client, Ethernet/IP adapter, DHCP client
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB 2.0non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45
- Maximum Size Of Object Areas
- 255 %C counters, 512 %M memory bits, 8000 %MW memory words, 512 %KW constant words, 255 %TM timers
- Maximum Current Per Output Common
- 5 A
- Maximum Power Consumption In W
- 14 W 24 V with max number of I/O expansion module)4.8 W 24 V without I/O expansion module)
Maximum Cable Distance Between Devicesshielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital inputunshielded cable <1 m analog inputshielded cable <3 m fast output
Maximum Tungsten Load<12 W output and fast output, <12 W output and fast output<12 W output and fast output, <12 W output and fast output
Maximum Leakage Current0.1 mA transistor output
Maximum Voltage Drop<1 V<1 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Clock Drift
- <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
- Control Signal Type
- A/B, single phase, pulse/direction
- Electromagnetic Emission
- conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
- Insulation
- between input and internal logic 500 V AC, between fast input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs
- Memory Capacity
- 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Response Time
- 5 µs turn-off, I0, I1, I6, I7 fast input, 35 µs turn-off, I2...I5 input5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output
- Voltage State 0 Guaranteed
- <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
- Certificate Agency
- ABS, EAC, RCM, cULus, LR, DNV-GL, CE, UKCA, cULus HazLoc
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.172945015191789, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 20 kg CO2 eq., 19.926102686518046
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Data Backed Up
- 256 kB built-in flash memory backup of application and data
- Environmental Characteristic
- ordinary and hazardous location
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task
- Immunity To Microbreaks
- 10 ms
- Lsb Value
- 10 mV
- Mechanical Durability
- 20000000 cycles transistor output
- Positioning Functions
- PTO 2 pulse/direction 100 kHz)PTO 1 CW/CCW 100 kHz)
- Product Or Component Type
- logic controller
- Range Of Product
- Modicon M221
- Regulation Loop
- adjustable PID regulator up to 14 simultaneous loops
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2...2.7 GHz IEC 61000-4-3
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz IEC 61000-4-8
- Shock Resistance
- 147 m/s² 11 ms
- Supply
- serial)serial link supply 5 V, <200 mA
- Sustainable Packaging
- Yes
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s USB
- Pep Code
- ENVPEP1403012EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 110 mm
- Discrete I/O Number
- 24
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Configurable Filtering Time0 ms input, 3 ms input, 12 ms input
Electrical Connectionremovable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputsmini B USB 2.0 connector for a programming terminal
Function Availablefrequency generator, PLS, PWM
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT1 LED per channel (green) for I/O state, 1 LED (green) for SLEthernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status)
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Vibration Resistance1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting1 gn 8.4-150 Hz symmetrical rail
Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Carbon Footprint Of The Distribution Phase [A4]1.2328853865239249, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.009153485360436548
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]99 kg CO2 eq., 98.57894281532788
Local Publishable Date2026-03-26
Stocking FlagY
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionStandard
Market SegmentationIndustrial
Conversion Time1 ms per channel + 1 controller cycle time analog input
Data Storage Equipment2 GB SD card optional)
Exct Time For Event Task60 µs response time
Execution Time Per Instruction0.2 µs Boolean
Inrush Current35 A
MarkingCE
Port Ethernet10BASE-T/100BASE-TX 1 100 m copper cable
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typeoverload and short-circuit protection 1 A
Realtime Clockwith
Reset Time1 s automatic reset
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
ReturnabilityYes
Software Versionv6.2.2
Supply Voltage Limits20.4-28.8 V
Total Lifecycle Carbon Footprint121 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture)14 (remote I/O-Architecture)
Package Weight(Lbs)600.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403012EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint120.92002938892207
Environmental DisclosureENVPEP1403012EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M221
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Output Frequency
- 100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q30.1 kHz output Q4...Q9
- Discrete Output Logic
- positive logic (source)
- Discrete Output Type
- transistor
- Maximum Current Per Output Common
- 5 A
Discrete Output Current0.5 A
Discrete Output Number10 transistor 2 fast output
Discrete Output Voltage24 V DC
Power Supply Output Current0.52-0.52 A 5 V expansion bus0.2-0.2 A 24 V expansion bus
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms input, 3 ms input, 12 ms input
Surge Withstand1 kV power lines (AC) differential mode IEC 61000-4-51 kV relay output differential mode IEC 61000-4-50.5 kV power lines (DC) common mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-51 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5
Input Attributes
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
- Analogue Input Resolution
- 10 bits
- Discrete Input Current
- 7 mA discrete input5 mA fast input
- Discrete Input Number
- 14 , discrete input 4 fast input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Analogue Input Number2 0...10 V
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V
Input Impedance3.4 kOhm discrete input100 kOhm analog input4.9 kOhm fast input
Batteries & Runtime Attributes
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
