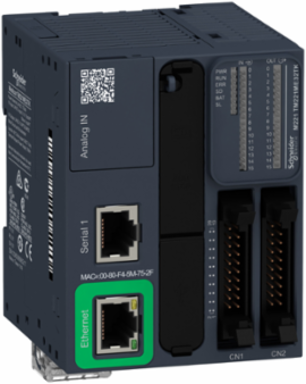

Schneider Electric TM221ME32TK Modicon M221 Logic Controller, 32 I/O, 24V DC, Ethernet, IP20
- MPN: TM221ME32TK
- PPN: SCH-TM221ME32TK
CAD
$571.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 16 discrete, 4 fast inputs, 16 transistor, 2 fast outputs with ethernet PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.1A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.27kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Germany, France, Singapore, Taiwan, United States |
|---|
| Depth | 70 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | USB port USB - SoMachine-Networknon isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet |
|---|
| Communication Service | Modbus TCP slave device, Modbus TCP server, Modbus TCP client, Ethernet/IP adapter, DHCP client |
|---|
Complementary Attributes
| Integrated Connection Type | USB port mini B USB 2.0non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45 |
|---|---|
| Maximum Size Of Object Areas | 255 %C counters, 512 %M memory bits, 512 %KW constant words, 8000 %MW memory words, 255 %TM timers |
| Maximum Current Per Output Common | 1.6 A |
| Maximum Power Consumption In W | 23.2 W 24 V with max number of I/O expansion module)4.2 W 24 V without I/O expansion module) |
| Maximum Cable Distance Between Devices | shielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital inputunshielded cable <1 m analog inputshielded cable <3 m fast output |
|---|---|
| Maximum Tungsten Load | <2.4 W output and fast output, <2.4 W output and fast output<2.4 W output and fast output, <2.4 W output and fast output |
| Maximum Leakage Current | 0.1 mA transistor output |
| Maximum Voltage Drop | <1 V<1 V |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Application Structure | 1 cyclic auxiliary task, 1 configurable freewheeling/cyclic master task, 8 interrupt tasks |
| Configurable Filtering Time | 0 ms input, 3 ms input, 12 ms input |
| Electrical Connection | terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputsmini B USB 2.0 connector for a programming terminal, HE-10 connector, 20 for inputs, HE-10 connector, 20 for outputs |
| Function Available | frequency generator, PWM, PLS |
| Local Signalling | 1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT1 LED per channel (green) for I/O state, 1 LED (green) for SLEthernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status) |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Response Time | 5 µs turn-off, I0, I1, I6, I7 fast input, 35 µs turn-off, I2...I5 input5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output |
| Voltage State 0 Guaranteed | <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input |
| Certificate Agency | ABS, DNV-GL, LR, cULus, EAC, RCM, CE, UKCA, cULus HazLoc |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.7932961455403404, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 13 kg CO2 eq., 13.476591188949405 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Data Backed Up | 256 kB built-in flash memory backup of application and data |
| Environmental Characteristic | ordinary and hazardous location |
| Execution Time For 1 Kinstruction | 0.3 ms event and periodic task0.7 ms other instruction |
| Immunity To Microbreaks | 10 ms |
| Lsb Value | 10 mV |
| Mechanical Durability | 20000000 cycles transistor output |
| Positioning Functions | PTO 2 pulse/direction 100 kHz)PTO 1 CW/CCW 100 kHz) |
| Product Or Component Type | logic controller |
| Realtime Clock | with |
| Reset Time | 1 s automatic reset |
| Resistance To Electrostatic Discharge | 8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2 |
| Returnability | Yes |
| Software Version | v6.2.2 |
| Supply Voltage Limits | 20.4-28.8 V |
| Total Lifecycle Carbon Footprint | 101 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Taiwan, TW |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 90 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Maximum Number Of I/O Expansion Module | 7 (local I/O-Architecture)14 (remote I/O-Architecture) |
| Package Weight(Lbs) | 606.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Clock Drift | <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C |
| Control Signal Type | single phase, A/B, pulse/direction |
| Electromagnetic Emission | conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011 |
| Insulation | between input and internal logic 500 V AC, between fast input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs |
| Memory Capacity | 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM |
| Protection Type | short-circuit and overload protection with automatic reset, short-circuit protection on outputoverload and short-circuit protection 1 A |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link) |
| Vibration Resistance | 1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting1 gn 8.4-150 Hz symmetrical rail |
| Voltage State 1 Guaranteed | >= 15 V input, >= 15 V input>= 15 V input, >= 15 V input |
| Carbon Footprint Of The Distribution Phase [A4] | 0.8338355271176304, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.006190763045705879 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 86 kg CO2 eq., 86.25657496341191 |
| Local Publishable Date | 2026-07-23 |
| Stocking Flag | N |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Conversion Time | 1 ms per channel + 1 controller cycle time analog input |
| Data Storage Equipment | 2 GB SD card optional) |
| Exct Time For Event Task | 60 µs response time |
| Execution Time Per Instruction | 0.2 µs Boolean |
| Inrush Current | 35 A |
| Marking | CE |
| Port Ethernet | 10BASE-T/100BASE-TX 1 100 m copper cable |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Regulation Loop | adjustable PID regulator up to 14 simultaneous loops |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2...2.7 GHz IEC 61000-4-3 |
| Resistance To Magnetic Fields | 30 A/m 50/60 Hz IEC 61000-4-8 |
| Shock Resistance | 147 m/s² 11 ms |
| Supply | serial 1)serial link supply 5 V, <200 mA |
| Sustainable Packaging | Yes |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s USB |
| Pep Code | ENVPEP1403012EN |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 70 mm |
| Discrete I/O Number | 32 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation) |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 101.36648858806498 |
| Environmental Disclosure | ENVPEP1403012EN |
| Ip Degree Of Protection | IP20 with protective cover in place |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1403012EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | logic controller |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Output Frequency | 100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q30.1 kHz output Q4...Q15 |
|---|---|
| Discrete Output Logic | positive logic (source) |
| Discrete Output Type | transistor |
| Maximum Current Per Output Common | 1.6 A |
| Discrete Output Current | 0.1 A |
|---|---|
| Discrete Output Number | 16 transistor 2 fast output |
| Discrete Output Voltage | 24 V DC |
| Power Supply Output Current | 0.52-0.52 A 5 V expansion bus0.48-0.48 A 24 V expansion bus |
Surge Protection And Filtering Attributes
| Configurable Filtering Time | 0 ms input, 3 ms input, 12 ms input |
|---|
| Surge Withstand | 1 kV power lines (AC) differential mode IEC 61000-4-51 kV relay output differential mode IEC 61000-4-50.5 kV power lines (DC) common mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-51 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5 |
|---|
Input Attributes
| Permitted Overload On Inputs | +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input |
|---|---|
| Analogue Input Resolution | 10 bits |
| Discrete Input Current | 7 mA discrete input5 mA fast input |
| Discrete Input Number | 16 , discrete input 4 fast input IEC 61131-2 Type 1 |
| Discrete Input Voltage Type | DC |
| Analogue Input Number | 2 0...10 V |
|---|---|
| Counting Input Number | 4 fast input (HSC mode) 100 kHz 32 bits |
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V |
| Input Impedance | 100 kOhm analog input3.4 kOhm input4.9 kOhm fast input |
Batteries & Runtime Attributes
| Battery Type | BR2032 or CR2032X lithium non-rechargeable |
|---|
