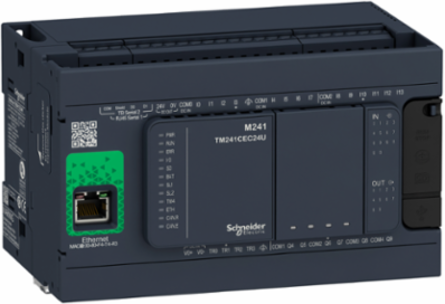

Modicon M241 Logic Controller 24 I/O, Ethernet, 0.53 kg, IP20
Schneider Electric

Schneider Electric TM241CE24R Modicon M241 Logic Controller 24 I/O, Ethernet, 0.53 kg, IP20

  • MPN: TM241CE24R
  • PPN: SCH-TM241CE24R
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $801.08

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Modicon M241 Logic Controller 24 I/O, Ethernet, 0.53 kg, IP20

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States
    Depth95 mm

    Communications & Management Attributes

    Communication Service
    FDR, DHCP server via TM4 Ethernet switch network module, DHCP client embedded Ethernet port, SMS notifications, updating firmware, SNMP client/server, programming, NGVL, monitoring, IEC VAR ACCESS, FTP client/server, downloading, SQL client, Modbus TCP client I/O scanner, Ethernet/IP originator I/O scanner embedded Ethernet port, Ethernet/IP target, Modbus TCP server and Modbus TCP slave, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
    Communication Port Protocolnon isolated serial link Modbus master/slave

    Complementary Attributes

    Integrated Connection Type
    non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0, Ethernet RJ45
    Maximum Number Of Connections
    8 Modbus server, 8 SoMachine protocol, 10 web server, 4 FTP server, 16 Ethernet/IP target, 8 Modbus client
    Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m output, shielded cable <3 m fast output
    Maximum Output Frequency1 kHz transistor output, 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode)

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Application Structure
    8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 event tasks, 4 cyclic master tasks
    Control Signal Type
    A/B 100 kHz fast input (HSC mode), pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    Data Storage Equipment
    <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    Electromagnetic Emission
    conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5-300 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
    Insulation
    between supply and internal logic 500 V AC, non-insulated between supply and ground
    Mounting Support
    top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Reset Time
    10 ms automatic reset output, 12 s automatic reset fast output
    Resistance To Electromagnetic Fields
    10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    Resistance To Fast Transients
    2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    Vibration Resistance
    3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    Voltage State 1 Guaranteed
    >= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    Maximum Number Of I/O Expansion Module
    7 (local I/O-Architecture), 14 (remote I/O-Architecture)
    Carbon Footprint Of The Distribution Phase [A4]
    4.100122933549426, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.021298222272208407
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    2 217 kg CO2 eq., 2217.2281293821015
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1307080EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Data Backed Up
    128 MB built-in flash memory backup of user programs
    Marking
    CE
    Network Frequency
    50/60 Hz
    Positioning Functions
    PTO 4 100 kHz)
    Product Or Component Type
    logic controller
    Realtime Clock
    with
    Returnability
    Yes
    Shock Resistance
    15 gn 11 ms
    Supply
    serial 1)serial link supply 5 V, <200 mA
    Sustainable Packaging
    Yes
    Web Services
    web server
    Pep Code
    ENVPEP1307080EN
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential, In %
    3
    Width Nominal
    150 mm
    Discrete I/O Number
    24
    Package Weight(Lbs)
    760.0 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    Cycle Time10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP
    Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    Execution Time For 1 Kinstruction0.3 ms event and periodic task, 0.7 ms other instruction
    Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity
    Protection Typeshort-circuit protection transistor output, short-circuit and overload protection with automatic reset transistor output, reverse polarity protection transistor output, without protection relay output
    Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
    Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB, 10/100 Mbit/s Ethernet
    Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    Certificate AgencyRCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    Number Of Server Device(S)64 Modbus TCP, 16 EtherNet/IP
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.9399071772167593, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]53 kg CO2 eq., 52.918438958826194
    Local Data StatusPublishable
    Return IndicatorY
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Configurable Filtering Time1 s fast input
    Immunity To Microbreaks10 ms
    Memory Capacity64 MB system memory RAM
    Port Ethernet10BASE-T/100BASE-TX - 1 copper cable
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon M241
    Response Time50 µs turn-on, I0...I13 input
    Sensor Power Supply24-24 V DC 400 mA supplied by the controller
    Software Versionv6.2.2
    Supply Voltage Limits85-264 V
    Total Lifecycle Carbon Footprint2 276 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh2207.52
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal90 mm
    [Us] Rated Supply Voltage100...240 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    Relative Humidity
    10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1307080EN
    Eu Rohs Directive
    Compliant By Exemption
    Operating Altitude
    0...6561.68 ft (0...2000 m)
    Packaging Without Single Use Plastic
    No
    Storage Altitude
    0-3000 m
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint2276.2078966739664
    Environmental DisclosureENVPEP1307080EN
    Ip Degree Of ProtectionIP20 with protective cover in place
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1307080EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    logic controller
    Range Of ProductModicon M241

    ETIM

    ETIM 8
    EC000236
    ETIM 9EC000236

    Output Attributes

    Discrete Output Current
    2 A relay output Q4...Q9), 0.1 A fast output (PTO mode) TR0...TR3), 0.5 A transistor output TR0...TR3)
    Discrete Output Type
    relay, transistor
    Maximum Output Frequency
    1 kHz transistor output, 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode)
    Discrete Output Logic
    positive logic (source)
    Discrete Output Number6 relay, 4 transistor 4 fast output
    Discrete Output Voltage5...125 V DC relay output, 5...250 V AC relay output, 24 V DC transistor output
    Output Voltage Limits125 V DC relay output, 30 V DC transistor output, 277 V AC relay output

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV relay output differential mode IEC 61000-4-5, 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
    Configurable Filtering Time1 s fast input

    Input Attributes

    Counting Input Number
    4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz
    Discrete Input Logic
    sink or source
    Discrete Input Voltage
    24 V
    Input Impedance
    4.7 kOhm input
    Discrete Input Current5 mA input
    Discrete Input Number14 , discrete input 8 fast input IEC 61131-2 Type 1
    Discrete Input Voltage TypeDC

    Batteries & Runtime Attributes

    Battery Type
    BR2032 lithium non-rechargeable 4 year(s)

    Accessories
