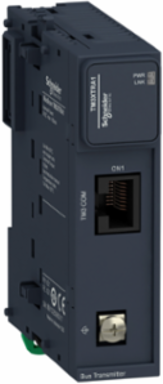

Schneider Electric TM3XTRA1 Modicon TM3 Remote Transmitter Module, IP20, 0.065 kg, 90 mm Height

MPN: TM3XTRA1
PPN: SCH-TM3XTRA1

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$161.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, United States

Depth	73.3 mm

Complementary Attributes

Maximum Power Dissipation In W	0.6 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Connection	RJ45 connector for connecting the bus receiver, screw connector terminal for connecting the functional ground
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Certificate Agency	Merchant Navy, C-tick, GOST, CSA HazLoc, CE, UKCA, RCM, EAC, cULus
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.046685, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.4486
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Use Carbon Footprint	25.735
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Cable Distance Between Devices	0.5-5 mm extension cable 2 RJ45 between receiver and transmitter
Electromagnetic Emission	radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Marking	CE
Number Of Hw Interfaces Other	1
Product Or Component Type	remote transmitter module
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Software Version	EIME v 5.7.0.3
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	27 kg CO2 eq.
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Potential Separation Present	false
Radio Standard Egprs	false
Pep Code	ENVPEP1403011EN
Pep Verification Date	2018-07-01
Type Of Verification For The Pep	Independent external review
Functional-unit Description	to connect the I/O modules of the M2•• automation system in a remote position and enhance the capabilities of the logic controllers 78.60% of the time for 10 years
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Recyclability Potential In %	12
Width Nominal	23.65 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	false
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
Carbon Footprint (Kg Co2 Eq Total Life Cycle)	27.253
Package Weight(Lbs)	166.000 g
Warranty (In Months)	18
Air Pollution (M3) Manufacturing [A1-a3]	177.42
Air Pollution (M3) End Of Life [C1-c4]	1.054
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	20.742
Global Warming (Kg.Equivalent.Co2) Total Life Cycle	27.253
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	25.735
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	1.2184
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	93.312
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	95.952
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	21.233
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	538.1
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	513.99
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	2.4151
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	2.0083
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	468.31
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	448.63
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	1.759
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	65.359
Water Pollution (M3) Manufacturing [A1-a3]	206.46
Water Pollution (M3) Operational Energy Use [B6]	1061.9
Customs Code	8538908180

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling	1 LED green power supply, 1 LED green Link (Link Status)
Vibration Resistance	3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
Carbon Footprint Of The Distribution Phase [A4]	0.021856, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.00047127
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	26 kg CO2 eq., 25.735
Local Publishable Date	2025-12-19
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Manufacturing Carbon Footprint	1.4486
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403011EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1845
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	true
Current Consumption	100 mA 5 V DC via bus connector at state on30 mA 5 V DC via bus connector at state off
Front Installation Possible	false
Network Type	DC
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
System Accessory	false
Radio Standard Lte	false
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Height Nominal	90 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Radio Standard Wi-fi 802.11	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
Wall Mounting/Direct Mounting Possible	false
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Total Life Cycle	1287.1
Air Pollution (M3) Operational Energy Use [B6]	1107.6
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	313.31
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	292.12
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]	1.4486
Hazardous Waste Disposed Of (Kg) Total Life Cycle	1.3955
Net Use Of Fresh Water (M3) Total Life Cycle	93.327
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle	96.444
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	470.32
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	448.63
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	23.648
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	67.775
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	65.359
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	2.0083
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	19.225
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	1.759
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	66.016
Water Pollution (M3) Total Life Cycle	1274.2
Water Pollution (M3) Distribution [A4]	3.5942
Water Pollution (M3) End Of Life [C1-c4]	2.0979

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-50 °C vertical installation)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Storage	-40-70 °C-40-70 °C
Environmental Disclosure	ENVPEP1403011EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403011EN
Pcr Version	PCR-ed3-EN-2015 04 02

Take Back	No
China Rohs Regulation	X
Carbon Footprint	27.253
Circularity Profile	ENVEOLI1403011EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2018-07-01
Type Of Verification For The Pep	Independent external review
