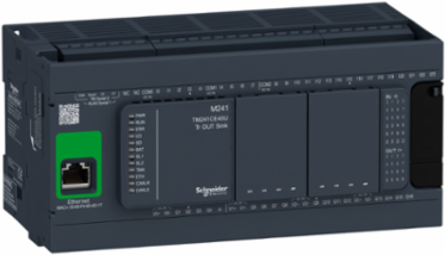

Schneider Electric TM241CE40U Modicon M241 Logic Controller, 40 I/O, 24V DC, Ethernet, IP20, 0.62kg
- MPN: TM241CE40U
- PPN: SCH-TM241CE40U
CAD
$951.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon M241 Logic Controller, 40 I/O, 24V DC, Ethernet, IP20, 0.62kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Singapore
Depth95 mm
Communications & Management Attributes
- Communication Service
- FDR, DHCP server via TM4 Ethernet switch network module, DHCP client embedded Ethernet port, SMS notifications, updating firmware, SNMP client/server, programming, NGVL, monitoring, IEC VAR ACCESS, FTP client/server, downloading, SQL client, Modbus TCP client I/O scanner, Ethernet/IP originator I/O scanner embedded Ethernet port, Ethernet/IP target, Modbus TCP server and Modbus TCP slave, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
Communication Port Protocolnon isolated serial link Modbus master/slave
Complementary Attributes
- Integrated Connection Type
- non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0, Ethernet RJ45
- Maximum Number Of Connections
- 8 Modbus server, 8 SoMachine protocol, 10 web server, 4 FTP server, 16 Ethernet/IP target, 8 Modbus client
- Maximum Current Per Output Common
- 2 A
- Maximum Tungsten Load
- <2.4 W<2.4 W
Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m output, shielded cable <3 m fast output
Maximum Output Frequency20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
Maximum Leakage Current5 µA output
Maximum Voltage Drop<1 V<1 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Application Structure
- 8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks, 8 event tasks
- Configurable Filtering Time
- 12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
- Cycle Time
- 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP
- Electrical Connection
- removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task, 0.7 ms other instruction
- Local Signalling
- 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity
- Positioning Functions
- PTO 4 100 kHz), PTO 4 transistor output 1 kHz)
- Reset Time
- 10 ms automatic reset output, 12 s automatic reset fast output
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB, 10/100 Mbit/s Ethernet
- Voltage State 0 Guaranteed
- <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
- Certificate Agency
- RCM, cULus, CE, UKCA, DNV-GL, ABS, LR
- Number Of Server Device(S)
- 64 Modbus TCP, 16 EtherNet/IP
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.965432271653822, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 54 kg CO2 eq., 53.61473420828443
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Inrush Current
- 50 A
- Memory Capacity
- 64 MB system memory RAM
- Power Consumption In W
- 32.6-40.4 W with max number of I/O expansion module)
- Product Or Component Type
- logic controller
- Realtime Clock
- with
- Shock Resistance
- 15 gn 11 ms
- Supply
- serial 1)serial link supply 5 V, <200 mA
- Sustainable Packaging
- Yes
- Web Services
- web server
- Pep Code
- ENVPEP1307080EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential, In %
- 3
- Width Nominal
- 190 mm
- Discrete I/O Number
- 40
- Package Weight(Lbs)
- 770.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
Control Signal TypeA/B 100 kHz fast input (HSC mode), pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC, between output groups 500 V AC
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Protection Typeshort-circuit protection, short-circuit and overload protection with automatic reset, reverse polarity protection fast output
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
Response Time<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, 50 µs turn-off, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, 50 µs turn-on, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output
Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Carbon Footprint Of The Distribution Phase [A4]4.154071919517182, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.02157846203894799
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]906 kg CO2 eq., 906.2480052633192
Local Publishable Date2026-01-12
Stocking FlagN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1307080EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Immunity To Microbreaks10 ms
MarkingCE
Port Ethernet10BASE-T/100BASE-TX - 1 copper cable
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M241
ReturnabilityYes
Software Versionv6.2.2
Supply Voltage Limits20.4-28.8 V
Total Lifecycle Carbon Footprint966 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh902.28
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1307080EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint966.0038221248136
Environmental DisclosureENVPEP1307080EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1307080EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M241
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 0.1 A fast output (PTO mode) Q0...Q3), 0.5 A transistor output Q0...Q15)
- Discrete Output Logic
- negative logic (sink)
- Discrete Output Type
- transistor
- Maximum Current Per Output Common
- 2 A
Maximum Output Frequency20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
Discrete Output Number16 transistor 4 fast output
Discrete Output Voltage24 V DC transistor output
Output Voltage Limits30 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
Input Attributes
- Counting Input Number
- 4 fast input (HSC mode) 200 kHz, 16 standard input 1 kHz
- Input Impedance
- 4.7 kOhm input, 2.81 kOhm fast input
- Discrete Input Number
- 24 , discrete input 8 fast input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Discrete Input Current10.7 mA fast input, 7 mA input
Discrete Input Logicsink or source
Discrete Input Voltage24 V
Batteries & Runtime Attributes
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
