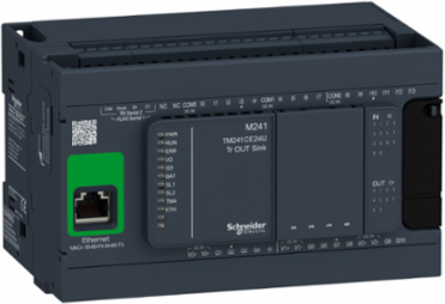

Schneider Electric TM241CE24U Modicon M241 Logic Controller, 24 I/O, 0.5A Transistor Output, Ethernet
Schneider Electric TM241CE24U Modicon M241 Logic Controller, 24 I/O, 0.5A Transistor Output, Ethernet
- MPN: TM241CE24U
- PPN: SCH-TM241CE24U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$777.82/ EA
Description
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 10 transistor, 4 fast outputs with ethernet NPN transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic negative output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with removable screw terminal block and RS485 interface and ethernet with RJ45 . It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Specifications
Specifications
- Discrete Output Type
- transistor
- Discrete Output Number
- 10 transistor 4 fast output
- Discrete Output Current
- 0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)
- [Us] Rated Supply Voltage
- 24 V DC
Range Of ProductModicon M241
Product Or Component Typelogic controller
Discrete Output Voltage24 V DC transistor output
Discrete Input Number14 , discrete input 8 fast input IEC 61131-2 Type 1
Environment
- Product Certifications
- RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Storage Altitude
- 0-3000 m
- Pollution Degree
- 2
- Shock Resistance
- 15 gn 11 ms
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 with protective cover in place
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Immunity To Microbreaks10 ms
StandardsANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
Ambient Air Temperature For Operation-10-50 °C vertical installation) || -10-55 °C horizontal installation)
Vibration Resistance3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Operating Altitude0...2000 m
Complementary
- Discrete Input Logic
- sink or source
- Electrical Connection
- removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Maximum Cable Distance Between Devices
- unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
- Discrete Output Logic
- negative logic (sink)
- Inrush Current
- 50 A
- Discrete Input Voltage Type
- DC
- Accuracy
- +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
- Maximum Current Per Output Common
- 2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output
- Clock Drift
- <= 60 s/month 25-25 °C
- Communication Port Protocol
- non isolated serial link Modbus master/slave
- Backup Time
- 2 years 25 °C
- Reset Time
- 10 ms automatic reset output || 12 s automatic reset fast output
- Maximum Number Of I/O Expansion Module
- 7 local || 14 remote
- Application Structure
- 8 external event tasks || 4 cyclic master tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task
- Maximum Voltage Drop
- <1 V
- Output Voltage Limits
- 30 V DC
- Communication Service
- FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading || SQL client || Modbus TCP client I/O scanner || Ethernet/IP originator I/O scanner embedded Ethernet port || Ethernet/IP target, Modbus TCP server and Modbus TCP slave || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client
- Supply Voltage Limits
- 20.4-28.8 V
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Local Signalling
- PWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || I/O error (I/O) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || SL1 1 LED green) || SL2 1 LED green) || bus fault on TM4 (TM4) 1 LED red) || I/O state 1 LED per channel green) || Ethernet port activity 1 LED green)
- Response Time
- 50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q3 fast output || <= 2 µs turn-off, Q0...Q3 fast output
- Maximum Output Frequency
- 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output
- Realtime Clock
- with
- Width
- 150 mm
- Number Of Slave
- 64 Modbus TCP || 16 EtherNet/IP
- Maximum Tungsten Load
- <2.4 W
- Maximum Leakage Current
- 5 µA output
- Insulation
- between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic 500 V AC || non-insulated between outputs || between fast output and internal logic 500 V AC || between output groups 500 V AC
- Counting Input Number
- 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
Data Backed Up128 MB built-in flash memory backup of user programs
Input Impedance4.7 kOhm input || 2.81 kOhm fast input
Height90 mm
Discrete Input Voltage24 V
Power Consumption In W32.6-40.4 W with max number of I/O expansion module)
Positioning FunctionsPTO 4 100 kHz) || PTO 4 transistor output 1 kHz)
Port Ethernet10BASE-T/100BASE-TX - 1 copper cable
Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet
Battery TypeBR2032 lithium non-rechargeable 4 year(s)
MarkingCE
Discrete I/O Number24
Cycle Time10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP
Net Weight0.53 kg
Voltage State 0 Guaranteed<= 5 V input
Configurable Filtering Time1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input
Memory Capacity64 MB system memory RAM
Voltage State 1 Guaranteed>= 15 V input
Integrated Connection Typenon isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45
Control Signal TypeA/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5
Discrete Input Current5 mA input || 10.7 mA fast input
Execution Time For 1 Kinstruction0.3 ms event and periodic task || 0.7 ms other instruction
Web Servicesweb server
Maximum Number Of Connections8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client
Depth95 mm
Protection Typeshort-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output
Data Storage Equipment<= 16 GB SD card optional)
Supplyserial 1)serial link supply 5 V, <200 mA
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307080EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1307080EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
