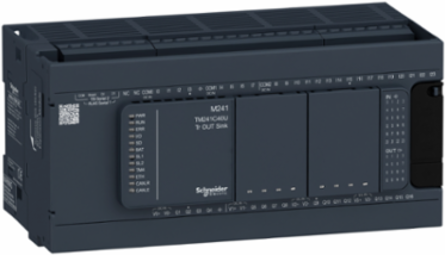

Schneider Electric TM241C40U Modicon M241 Logic Controller, 40 IO, 24V DC, 0.5A Transistor Output

  • MPN: TM241C40U
  • PPN: SCH-TM241C40U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $876.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon M241 Logic Controller, 40 IO, 24V DC, 0.5A Transistor Output

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, Singapore
    Depth95 mm

    Communications & Management Attributes

    Communication Port Protocolnon isolated serial link Modbus master/slave

    Complementary Attributes

    Integrated Connection Typenon isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485USB port mini B USB 2.0
    Maximum Current Per Output Common2 A
    Maximum Output Frequency20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    Maximum Voltage Drop<1 V<1 V
    Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m outputshielded cable <3 m fast output
    Maximum Leakage Current5 µA output
    Maximum Tungsten Load<2.4 W<2.4 W

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Application Structure8 event tasks, 8 external event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task
    Configurable Filtering Time12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC, between output groups 500 V AC
    Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    Response Time<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output50 µs turn-off, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, 50 µs turn-on, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output
    Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    Certificate AgencyRCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.9399071772167593, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]53 kg CO2 eq., 52.918438958826194
    Local Data StatusPublishable
    Return IndicatorN
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Data Backed Up128 MB built-in flash memory backup of user programs
    Execution Time For 1 Kinstruction0.3 ms event and periodic task0.7 ms other instruction
    Inrush Current50 A
    Memory Capacity64 MB system memory RAM
    Power Consumption In W32.6-40.4 W with max number of I/O expansion module)
    Product Or Component Typelogic controller
    Realtime Clockwith
    Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
    ReturnabilityNo
    Software Versionv6.2.2
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint965 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh902.28
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal90 mm
    [Us] Rated Supply Voltage24 V DC
    Maximum Number Of I/O Expansion Module7 (local I/O-Architecture)14 (remote I/O-Architecture)
    Package Weight(Lbs)760.0 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    Control Signal TypeA/B 100 kHz fast input (HSC mode)pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4)1 LED per channel (green) for I/O state
    Protection Typeshort-circuit protection, short-circuit and overload protection with automatic resetreverse polarity protection fast output
    Resistance To Fast Transients2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    Carbon Footprint Of The Distribution Phase [A4]4.100122933549426, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.021298222272208407
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]906 kg CO2 eq., 906.2480052633192
    Local Publishable Date2026-01-12
    Stocking FlagY
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1307080EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1845
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
    Immunity To Microbreaks10 ms
    MarkingCE
    Positioning FunctionsPTO 4 100 kHz)PTO 4 transistor output 1 kHz)
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon M241
    Reset Time10 ms automatic reset output12 s automatic reset fast output
    Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
    Shock Resistance15 gn 11 ms
    Supplyserial 1)serial link supply 5 V, <200 mA
    Sustainable PackagingYes
    Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s 3-3 m USB
    Pep CodeENVPEP1307080EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential In %3
    Width Nominal190 mm
    Discrete I/O Number40
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109160

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    Relative Humidity10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1307080EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Storage Altitude0-3000 m
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint965.2277725551838
    Environmental DisclosureENVPEP1307080EN
    Ip Degree Of ProtectionIP20 with protective cover in place
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1307080EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typelogic controller
    Range Of ProductModicon M241

    ETIM

    ETIM 8EC000236
    ETIM 9EC000236

    Output Attributes

    Discrete Output Current0.1 A fast output (PTO mode) Q0...Q3), 0.5 A transistor output Q0...Q15)
    Discrete Output Number16 transistor 4 fast output
    Discrete Output Voltage24 V DC transistor output
    Maximum Output Frequency20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    Discrete Output Logicnegative logic (sink)
    Discrete Output Typetransistor
    Maximum Current Per Output Common2 A
    Output Voltage Limits30 V DC

    Surge Protection And Filtering Attributes

    Configurable Filtering Time12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-50.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5

    Input Attributes

    Counting Input Number4 fast input (HSC mode) 200 kHz, 16 standard input 1 kHz
    Discrete Input Logicsink or source
    Discrete Input Voltage24 V
    Input Impedance4.7 kOhm input2.81 kOhm fast input
    Discrete Input Current10.7 mA fast input7 mA input
    Discrete Input Number24 , discrete input 8 fast input IEC 61131-2 Type 1
    Discrete Input Voltage TypeDC

    Batteries & Runtime Attributes

    Battery TypeBR2032 lithium non-rechargeable 4 year(s)
