Schneider Electric TM258LF42DT Modicon M258 Logic Controller, 42 I/O, 24V DC, Ethernet, CANopen
- MPN: TM258LF42DT
- PPN: SCH-TM258LF42DT
CAD
$2280.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

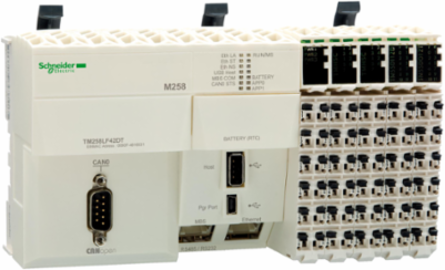

Modicon M258 Logic Controller, 42 I/O, 24V DC, Ethernet, CANopen
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, France, United States |
|---|
| Depth | 85 mm |
|---|
Complementary Attributes
| Integrated Connection Type | 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s1 CANopen male SUB-D 9 CANopen master |
|---|---|
| Line Rated Current | 0.04 A embedded expert modules power10 A I/O power segment0.26 A main supply |
| Maximum Cable Distance Between Devices | <30 m fast input, <30 m fast input, <30 m fast output, <30 m fast output, <30 m regular input, <30 m regular input<30 m fast input, <30 m fast input, <30 m fast output, <30 m regular input |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Configurable Filtering Time | 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output |
| Peak Current | 100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power1.2 A > 70 s)main supply |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines) |
| Voltage State 1 Guaranteed | >= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input |
| [Us] Rated Supply Voltage | 24 V DC embedded expert modules power, 24 V DC I/O power segment, 24 V DC main supply |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Dangerous Goods Code | LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
| Electromagnetic Compatibility | EN/IEC 61000-4-6 |
| Isolation Between Channels And Internal Logic | 500 Vrms AC |
| Memory Description | flash 128 MBinternal RAM 64 MB |
| Power Consumption In W | 13.03 W |
| Product Or Component Type | logic controller |
| Realtime Clock | without any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month |
| Resistance To Electrostatic Discharge | 4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2 |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | No |
| Vibration Resistance | 1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail |
| Height Nominal | 99 mm |
| Discrete I/O Number | 42 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED per channel I/O state1 LED CAN0 STS, 1 LED MBS COM1 LED green/red APP0, 1 LED green/red APP1, 1 LED green/red Eth NS (Ethernet network status), 1 LED green/red Eth ST (Ethernet status), 1 LED green/red RUN/MS (module status), 1 LED green/red USB host1 LED green/yellow Eth LA (Ethernet activity)1 LED red BATT (battery status) |
| Product Specific Application | -, - |
| Voltage State 0 Guaranteed | <= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input |
| Certificate Agency | GOST-R, cULus, C-tick, CSA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Data Backed Up | variables of type retain and retain persistent CR2477M Renata, 1.5 years |
| Isolation Between Channels | none |
| Marking | CE |
| Mounting Support | symmetrical DIN rail |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M258 |
| Resistance To Electromagnetic Fields | 1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3 |
| Returnability | Yes |
| Supply Voltage Limits | 20.4-28.8 V |
| Transmission Rate | 125 kbit/s 500-500 m CANopen250 kbit/s 250-250 m CANopen50 kbit/s 1000-1000 m CANopen500 kbit/s 100-100 m CANopen10 kbit/s 5000-5000 m CANopen1000 kbit/s 4-4 m CANopen20 kbit/s 2500-2500 m CANopen800 kbit/s 25-25 m CANopen |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 175 mm |
| Disturbance Radiated/Conducted | CISPR 11 |
| Package Weight(Lbs) | 781.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Storage Altitude | 0-3000 m |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20IEC 61131-2 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation |
General Attributes
| Product Or Component Type | logic controller |
|---|
| Range Of Product | Modicon M258 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Discrete Output Current | 4 mA fast output |
|---|---|
| Discrete Output Number | 12 output4 fast output |
| Output Voltage Limits | 19.2...28.8 V |
| Discrete Output Logic | source |
|---|---|
| Discrete Output Voltage | 24 V DC |
Surge Protection And Filtering Attributes
| Configurable Filtering Time | 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output |
|---|---|
| Surge Withstand | 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5 |
| Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Current | 4 mA fast input, 4 mA regular input |
|---|---|
| Input Impedance | 6 kOhm fast input, 6 kOhm regular input |
| Discrete Input Number | 10 fast input12 input4 regular input |
| Discrete Input Voltage Type | DC |
| Discrete Input Logic | sink fast input, sink regular inputsource input |
|---|---|
| Counting Input Number | 8 200 kHz |
| Discrete Input Voltage | 24 V |
