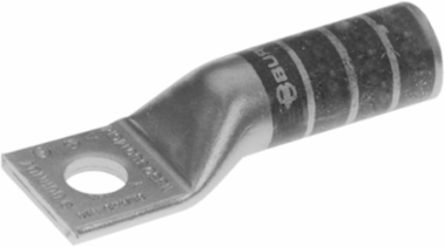

Burndy YA5C HYLUGTM Long Length Barrel Compression Connector, 5 AWG, 1/4 Inch Stud, Copper
- MPN: YA5C
- UPC: 781810017906
- PPN: BUR-502034
CAD
$23.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Compression HYLUG™, 1 Hole w/o Inspection Window, 5 AWG, 1/4" Stud, Long Barrel, Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12
- Dimension - Hole Size inch
- 0.27
- Dimension - L Length Overall mm
- 50
- Dimension - N inch
- 0.25
- Dimension - Pad Width inch
- 0.44
- Dimension - Stud Size inch
- 1/4 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.27
Dimension - Hole Size mm7
Dimension - Length Overall inch1.98
Dimension - Outside Diameter inch0.3
Dimension - Strip Length inch1-3/16 in
Dimension - Z inch0.33
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 5 AWG
- Conductor - Copper Str Navy Size Range
- 30 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size30 (19) Navy
Conductor - Copper Str Size5 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810017906
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStraight
Plating TypeTin
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100179066
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
