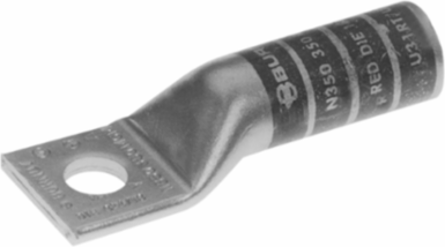

Burndy YA6CTC516 Long Barrel Copper Compression Terminal, 6 AWG, 1-3/16 Inch Strip Length, 2.08 Inch Overall Length
- MPN: YA6CTC516
- UPC: 781810547090
- PPN: BUR-50001463
CAD
$28.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BURNDY; HYLUG; YA-TC; Features: Uninsulated Copper compression terminal, Long Barrel; For use on copper compression connections; RoHS Compatible
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 2.08 in
- Dimension - Strip Length inch
- 1-3/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - Hole Size inch0.33 in
Dimension - L Length Overall mm53 mm
Dimension - Pad Width inch0.52 in
Dimension - Stud Size inch5/16
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Size
- 6 AWG
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range6 AWG
Conductor - Copper Str Size Range6 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Trade Name
- HYLUG™
- UPC
- 781810547090
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Temperature Rating194
TypeLong Barrel, Tin Plated
UPC 12 Digit7818105470900
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
