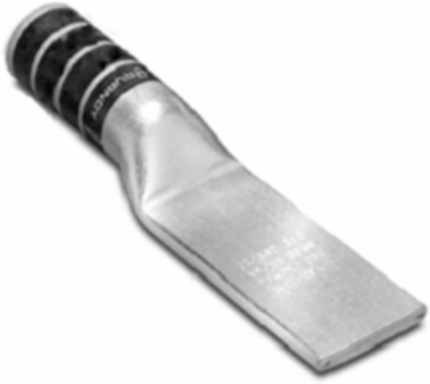

Long Length Barrel Compression Terminal, 8 AWG, 4.08 Inch L, Copper
Burndy

Burndy YA8C2NU Long Length Barrel Compression Terminal, 8 AWG, 4.08 Inch L, Copper

  • MPN: YA8C2NU
  • UPC: 781810273975
  • PPN: BUR-26001606

CAD

$28.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Cu Compression Terminal,Blank Tongue, #8 AWG, 4.08 IN L

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch
0.81 in
Dimension - D inch
3.01 in
Dimension - L Length Overall mm
404 mm
Dimension - Outside Diameter inch
0.27 in
Dimension - Strip Length inch
7/8
Physical Attribute - Tongue Angle
Straight
Dimension - Bolt Size fraction#10
Dimension - Inside Diameter inch0.18 in
Dimension - Length Overall inch4.08 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch#10

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Recognized
No
Industry Standard(s)
UL468A-468B
Standards - RoHS Compliance Status
CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes

Conductor Related

Conductor - Copper Str Size
8 AWG
Conductor - Material
Copper
Conductor - Copper Str Size Range8 AWG

General

Color Code
Red
Die Index
49
Feature - Barrel Type
Long
Physical Attribute - Number of Holes
0
Plating Type
Tin
Trade Name
HYLUG™
UPC
781810273975
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
TypeLong Barrel, Tin Plated
UPC 12 Digit7818102739755

Electrical Ratings

Rating - KVA
35 kV
Voltage - Maximum
35000
Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity
100
