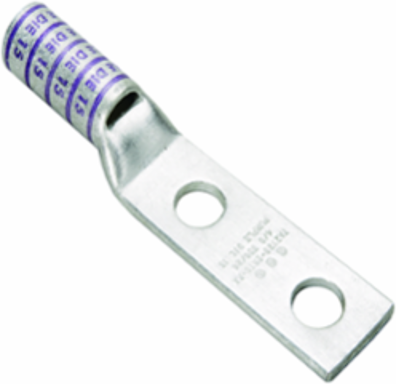

Burndy YAZ2C2N HYLUG Long Length Barrel Terminal, 2 AWG, 1/2 Inch Stud, 35 kV Rating
- MPN: YAZ2C2N
- UPC: 781810208557
- PPN: BUR-25016804
CAD
$36.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 2 Hole/W/InspWindow, #2 AWG Code, 60 Navy, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Lng bbl, Brown, 10 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.25 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.64 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.64 in
Dimension - Bolt Hole Size inch0.56 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm118 mm
Dimension - N inch0.62 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - Copper Str Size
- 2 AWG
Conductor - Copper Str Navy Size Range60 (37) Navy
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Yes
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102085577
Color CodeBrown
Die Index10
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810208557
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
