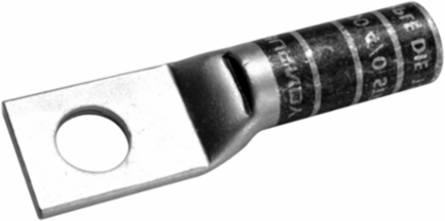

Burndy YAZ3CTC38 HYLUGTM Long Length Barrel Terminal, 3 AWG, Tin-Plated, 1-5/16 Inch Strip Length, 3/8 Inch Stud
- MPN: YAZ3CTC38
- UPC: 781810239599
- PPN: BUR-25020347
CAD
$19.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Uninsul Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, #3 AWG, #2 Sol Code, 50 Navy, 600 V-35 kV, 3/8" Stud, Lng bbl, White, 9 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.38 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch1.25 in
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm60 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.58 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Navy Size
- 50 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range2 AWG
Conductor - Copper Str Size3 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102395999
Color CodeWhite
Die Index9
Feature - Barrel TypeLong
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810239599
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
